P/N

CA-1T4-00M1WN-02

Model

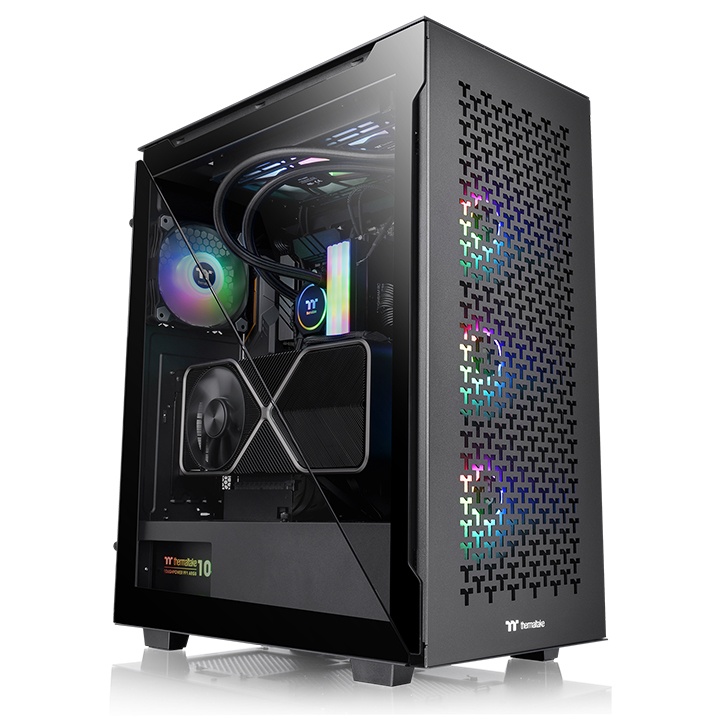

Divider 500 TG Air Black

Case Type

Mid Tower

Dimension (H x W x D)

530 x 230 x 466 mm
(20.9 x 9.1 x 18.3 inch)

Net Weight

10.29 kg / 22.69 lbs.

Side Panel

3mm Tempered Glass x 2

Color

Black

Material

SPCC

Cooling System

Front(intake):
120 x 120 x 25 mm fan (1200rpm, 22 dBA) x 1
Rear(exhaust):
120 x 120 x 25 mm fan (1200rpm, 22 dBA) x 1

Drive Bays
-Accessible
-Hidden

2 x 3.5”, 5 x 2.5”
or 7 x 2.5”

Expansion Slots

7 (Rotatable Patented Design)

Motherboards

6.7″ x 6.7″ (Mini ITX), 9.6″ x 9.6″ (Micro ATX), 12″ x 9.6″ (ATX)

I/O Port

USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1

PSU

Standard PS2 PSU (optional)

Fan Support

Front:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
Top:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Right (M/B Side):
2 x 120mm, 1 x 120mm
Rear:
1 x 120mm

Radiator Support

Front:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Top:
1 x 280mm, 1 x 140mm
1 x 240mm, 1 x 120mm
Right (M/B Side):
1 x 240mm (vertical-installed GPU recommended),
1 x 120mm
Rear:
1 x 120mm

Clearance

CPU cooler max height:
155mm (with one TG and one steel side panel)
170mm (with two TG)
VGA max length:
360mm (with radiator)
390mm (without radiator)
PSU max length:
180mm (with HDD Cage)
220mm (without HDD Cage)
