P/N

CA-1P4-00M1WN-00

SERIES

H Series

MODEL

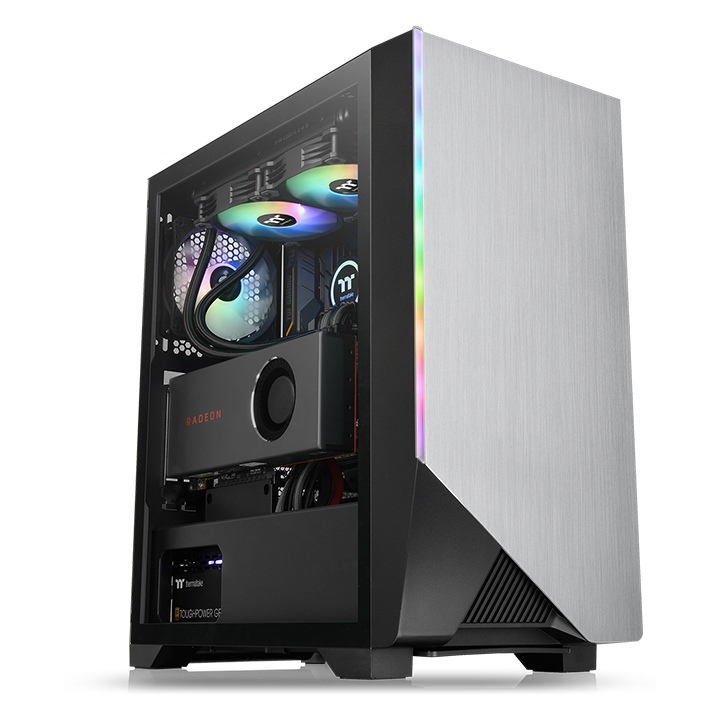

H550 TG ARGB

CASE TYPE

Middle tower

DIMENSION (H X W X D)

441 x 225 x 472 mm
(17.36 x 8.85 x 18.58 inch)

NET WEIGHT

7.65 kg / 16.87 lb

SIDE PANEL

4mm Tempered Glass x1

COLOR

Exterior & Interior : Black

MATERIAL

SPCC

COOLING SYSTEM

Rear (exhaust) :
1 x 120 x 120 x 25mm Addressable RGB fan
(1000rpm, 27.2 dBA)

DRIVE BAYS
-ACCESSIBLE
-HIDDEN

2 x 3.5“ or 2.5” (HDD Rack); 2 x 2.5” (HDD Bracket)

EXPANSION SLOTS

7+2

MOTHERBOARDS

6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)

I/O PORT

USB 3.0 x 1, USB 2.0 x 2, HD Audio x 1, RGB Switch x 1

PSU

Standard PS2 PSU (optional)

FAN SUPPORT

Front:
3 x 120mm, 2 x 140mm
Top:
2 x 120mm, 2 x 140mm
Rear:
1 x 120mm, 1 x 140mm

RADIATOR SUPPORT

Front: 1 x 280mm, 1 x 360mm
Top: 1 x 240mm
Rear: 1 x 120mm

CLEARANCE

CPU cooler height limitation: 165mm
PSU length limitation: 160mm(With HDD Rack)
　　　　　　　　　 200mm(Without HDD Rack)
VGA length limitation: 300mm
VGA width limitation(Vertically): 45mm
RAM height limitation: 40mm(With radiator series)
