| Case Type |
Middle tower |
| Model |

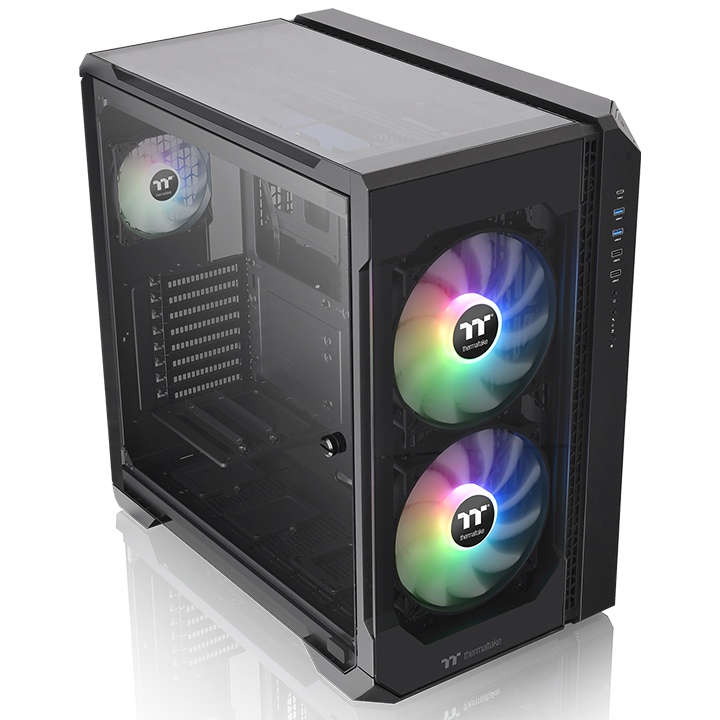

View 51 TG |
| P/N |
CA-1Q6-00M1WN-00 |
| Dimension (H x W x D) |
550 x 315 x 525 mm (21.65 x 12.4 x 20.67 inch) |
| Net Weight |
14.95 kg / 32.96 lb |
| Side Panel |
3 x Tempered Glass (4mm thickness) |
| Color |
Exterior & Interior: Black |
| Material |
SPCC |
| Cooling System |
Front (intake):
2 x 200 x 200 x 30mm Addressable RGB fan
(Fixed 600rpm, 24dBA)
Rear (exhaust):
1 x 120 x 120 x 25mm Addressable RGB fan
(Fixed 1000rpm, 27.2 dBA) |
Drive Bays
-Accessible
-Hidden |
2 x 2.5" (With HDD Bracket)
2 x 3.5" or 2.5" (With HDD Cage) |
| Expansion Slots |
8 |
| Motherboards |
6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX),
12" x 9.6" (ATX), 12" x 10.5" (E-ATX) |
| I/O Ports |
1 x Type-C,
2 x USB 2.0,
2 x USB 3.0,
1 x HD Audio,
1 x RGB Buttom |
| PSU |
Standard PS2 PSU (optional) |
| Fan Support |
Front:
2 x 200mm or 1 x 200mm
3 x 140mm or 2 x 140mm or 1 x 140mm
3 x 120mm or 2 x 120mm or 1 x 120mm
Top:
2 x 200mm or 1 x 200mm
3 x 140mm or 2 x 140mm or 1 x 140mm
3 x 120mm or 2 x 120mm or 1 x 120mm
Rear:
1 x 120mm ,
Right:
3 x 120mm or 2 x 120mm or 1 x 120mm
2 x 140mm or 1 x 140mm
Bottom:
3 x 120mm or 2 x 120mm or 1 x 120mm |
| Radiator Support |
Front:
1 x 360mm or 1 x 240mm or 1 x 120mm
1 x 280mm or 1 x 140mm
Top:
1 x 360mm or 1 x 240mm or 1 x 120mm
1 x 280mm or 1 x 140mm
Right:
1 x 360mm or 1 x 240mm or 1 x 120mm
1 x 280mm or 1 x 140mm
Bottom:
1 x 360mm or 1 x 240mm or 1 x 120mm |
| Clearance |
CPU cooler height limitation: 175mm
VGA length limitation: 300mm(With Water Pump)
440mm(Without Water Pump)
PSU length limitation: 200mm |
