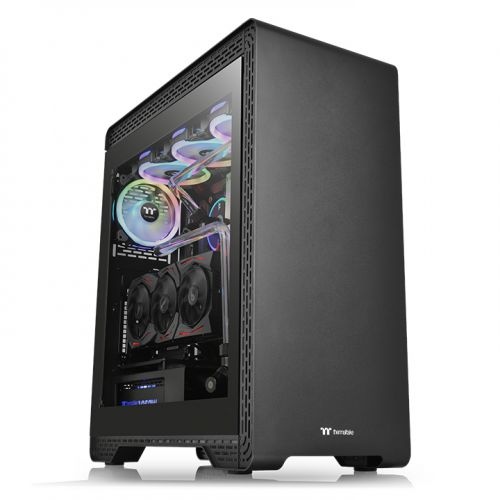

THERMALTAKE CASE S500 TG BLACK EDITION : CA-1O3-00M1WN-00    ราคา  3,290 บาท Inc.Vat

P/N
CA-1O3-00M1WN-00
SERIES
S Series
MODEL
S500 TG
CASE TYPE
Middle Tower
DIMENSION (H X W X D)
565 x 240 x 500 mm
(22.2 x 9.4 x 19.7 inch)
NET WEIGHT
15.04 kg / 33.15 lbs.
SIDE PANEL
4mm Tempered Glass x 1(Left)
COLOR
Exterior & Interior : Black
MATERIAL
SPCC
COOLING SYSTEM
Rear (exhaust) :
120 x 120 x 25 mm fan
(1000rpm, 16 dBA)
Front (intake) :
140 x 140 x 25 mm fan
(1000rpm, 20dBA)
DRIVE BAYS
-ACCESSIBLE
-HIDDEN

2.5” x 2 or 3.5”x 2 (HDD Rack)
2.5”x 1(HDD Bracket) ; 2.5” x 2 or 3.5” x 1(HDD Bracket)
EXPANSION SLOTS
8
MOTHERBOARDS
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
I/O PORT
USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1, Reset Button x 1
PSU
Standard PS2 PSU (optional)
FAN SUPPORT
Front:
3 x 120mm, 3 x 140mm, 2 x 200mm
Top:
3 x 120mm, 2 x 140mm, 2 x 200mm
Rear:
1 x 120mm
RADIATOR SUPPORT
Front:
1 x 360mm, 1 x 420mm
Top:
1 x 280mm, 1 x 360mm
Rear:
1 x 120mm
Right:
1 x 360mm (Without HDD Rack)
CLEARANCE
CPU cooler height limitation: 172mm
VGA length limitation: 282mm(With HDD Rack)
          400mm(Without HDD Rack)
PSU length limitation: 220mm

Warranty    2  Year
