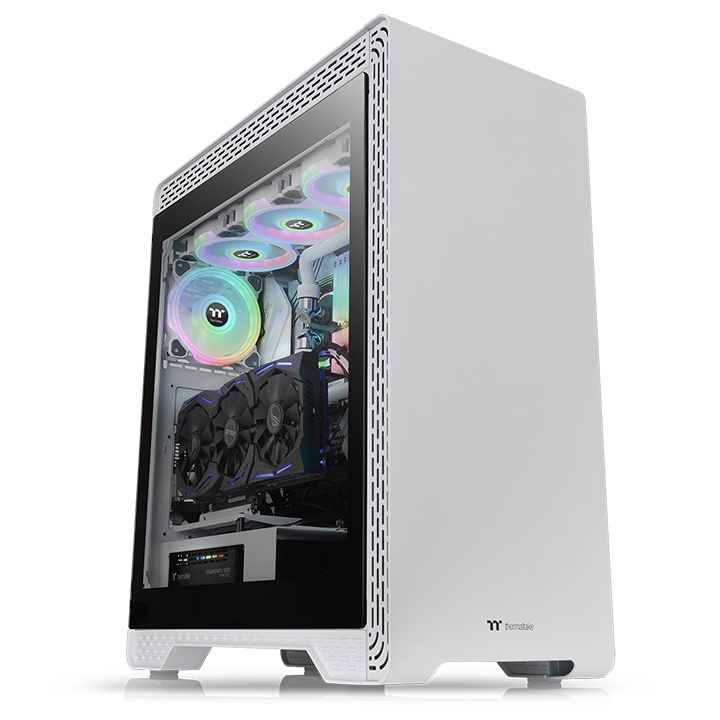

THERMALTAKE CASE S500 TG SNOW EDITION : CA-1O3-00M6WN-00     ราคา  3,490 บาท Inc.Vat

P/N : CA-1O3-00M1WN-00

SERIES : S Series

MODEL : S500 TG

CASE TYPE : Snow White

DIMENSION (H X W X D) : 565 x 240 x 500 mm (22.2 x 9.4 x 19.7 inch)

NET WEIGHT : 15.04 kg / 33.15 lbs.

SIDE PANEL : 4mm Tempered Glass x 1(Left)

COLOR : Exterior & Interior : Black

MATERIAL : SPCC

COOLING SYSTEM

Rear (exhaust) : 120 x 120 x 25 mm fan (1000rpm, 16 dBA)

Front (intake) : 140 x 140 x 25 mm fan (1000rpm, 20dBA)

DRIVE BAYS

-ACCESSIBLE : 2.5” x 2 or 3.5”x 2 (HDD Rack)

-HIDDEN : 2.5”x 1(HDD Bracket) ; 2.5” x 2 or 3.5” x 1(HDD Bracket)

EXPANSION SLOTS : 8

MOTHERBOARDS : 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)

I/O PORT : USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1, Reset Button x 1

PSU : Standard PS2 PSU (optional)

FAN SUPPORT

Front: 3 x 120mm, 3 x 140mm, 2 x 200mm

Top: 3 x 120mm, 2 x 140mm, 2 x 200mm

Rear: 1 x 120mm

RADIATOR SUPPORT

Front:

1 x 360mm, 1 x 420mm

Top: 1 x 280mm, 1 x 360mm

Rear: 1 x 120mm

Right: 1 x 360mm (Without HDD Rack)

CLEARANCE

CPU cooler height limitation: 172mm

VGA length limitation: 282mm(With HDD Rack)

400mm(Without HDD Rack)

PSU length limitation: 220mm

Warranty     2   Year
