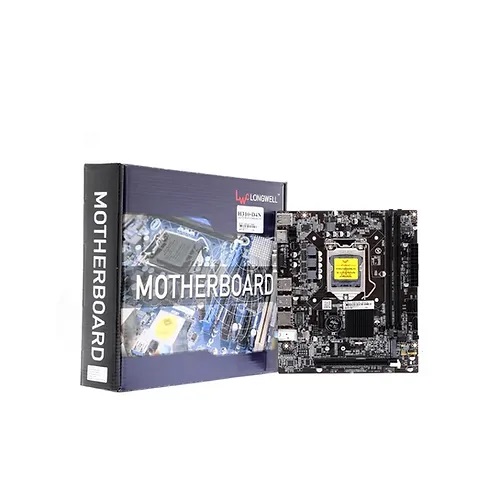

H310-D4N

Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel®
                        Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron®
                        processors in the LGA1151 V2 package
                    L3 cache varies with CPU

1151 V2

Intel H310

2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
                         Dual channel memory architecture
                         Support for DDR4 2666/2400/2133 MHz memory modules
                         Support for Extreme Memory Profile (XMP) memory modules
                         * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5
                             processor Graphics Integrated Graphics Processor-Intel® HD Graphics support:
                         1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
                         1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
                          * Support for HDMI 1.4 version and HDCP 2.2.
                          Maximum shared memory of 1 GB

2666

HD Graphics support:
                         1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
                         1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
                          * Support for HDMI 1.4 version and HDCP 2.2.
                          Maximum shared memory of 1 GB

None

Audio Realtek® ALC662 codec High Definition Audio 2/4/5.1-channel

1 x PCI Express x16 slots

N/A

3 x SATA 6Gb/s connectors

N/A

4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 3 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 headers

2 x PS.2 keyboard/mouse port 1 x HDMI port 1 x VGA port 2 x USB 2.0 ports 2 x USB 3.0 ports 1 x RJ-45 port 3 x audio jacks

Realtek® LAN chip (10/100 Mbit)

None

Micro ATX; 190cm x 170cm

N/A

N/A

N/A

N/A

N/A

มีฝาหลัง+สายSata+Driver
