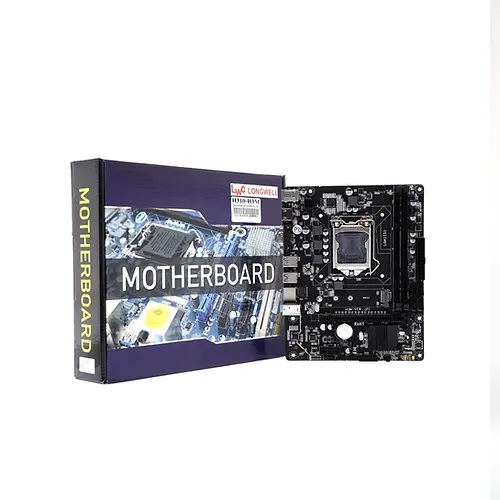

LWC H310-H3M


Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel®
Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron®
processors in the LGA1151 V2 package


Socket 1151


Chipset Intel H310


Memory Support 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
Dual channel memory architecture
Support for DDR4 2666/2400/2133 MHz memory modules


DDR4

2666/2400/2133


2666

2

N/A

N/A

Audio Realtek® ALC662 codec
High Definition Audio


1 x PCI Express x16 slot
1 x PCI Express x1 slot


N/A

4 x SATA 6Gb/s connectors
1 x M.2


pcie

1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 headers


1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 headers
1 x Clear CMOS jumper


2 x PS.2 keyboard/mouse port
1 x HDMI port
1 x VGA port
4 x USB 3.0 ports
1 x RJ-45 port
3 x audio jacks


10/100/1000 Mb/s auto negotiation Half/Full duplex capability
Realtek® RTL8111G


N/A

Micro ATX Form Factor; 21.6cm x 17.0cm


N/A

N/A

N/A

N/A

Win 7-11


1 x SATA cable
1 x I/O Rear Panel
1 x User Manual
