| Brand |
LONGWELL ราคา 1,490 บาท Inc.Vat |
| Model |

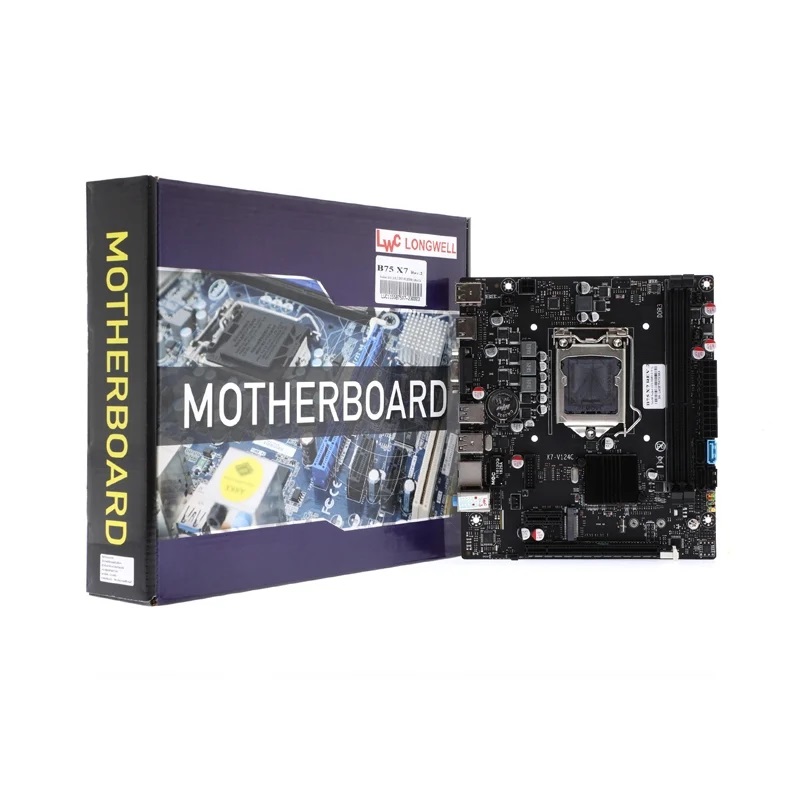

B75-X7 (REV.2.0)
|
| CPU Support |
Intel® 2nd/3rd Generation Core™ i3/i5/i7/Pentium®/Celeron® Processors
|
| Socket |
LGA1155
|
| Chipset |
Intel® B75
|
| Memory Support |
Dual Channel DDR3 Memory Technology
|
| Maximum Memory Bus |
1600
|
| Graphics |
N/A
|
| Multi Graphic Support |
None
|
| Audio |
Realtek® ALC 662 Channel High Definition Audio CODEC
|
| Expansion Slots |
1 x PCI Express 2.0 x16 (x16 mode)
1 x PCI Express 2.0 x1
|
| Maximum PCIe Version |
PCI Express 2.0
|
| Storage |
3 x SATA II 3.0Gb/s Connector
1 x SATA III 6.0Gb/s Connector
|
| M.2 Storage Type Support |
None
|
| USB |
4 x USB 2.0 Ports
2 x USB 3.0 Ports
|
| Internal I/O Connectors |
1 x 24-pin EATX Power Connector
1 x 4-pin ATX 12V Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x F USB 2.0 Connector
1 x COM port Connector
1 x Front Panel Audio Connector (AAFP)
1 x Speaker Connector
1 x System Panel Connector
|
| Back Panel Connectors |
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x VGA (D-Sub) Port
4 x USB 2.0 Ports
2 x USB 3.0 Ports
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
3 x Audio Jacks: Line in / Speaker / Microphone
|
| LAN |
10/100 Mb/s auto negotiation Half/Full duplex capability
Realtek® RTL8105E
|
| Wireless Data Network |
None
|
| Form Factor |
Micro ATX Form Factor Dimension: 19.0 cm*17.0cm
|
| H/W Monitoring |
N/A
|
| BIOS |
N/A
|
| Special Features |
Smart Fan Mode(Temperature control)
|
| Software Features |
N/A
|
| Operating System Support |
Microsoft® Window® XP / Vista / 7 / 8 / 10
|
| Package Contents |
1 x SATA cable
1 x I/O Rear Panel
1 x User Manual
1 x CD Driver
|
| Package Dimension |
(W x D x H) : 23.00 x 28.00 x 5.50 cm |
| Gross Weight |
0.60 KG |
| Volume |
0.00 cm3 |
