| Brand |
ASUS ราคา 2,290 บาท Inc.Vat |
| Model |

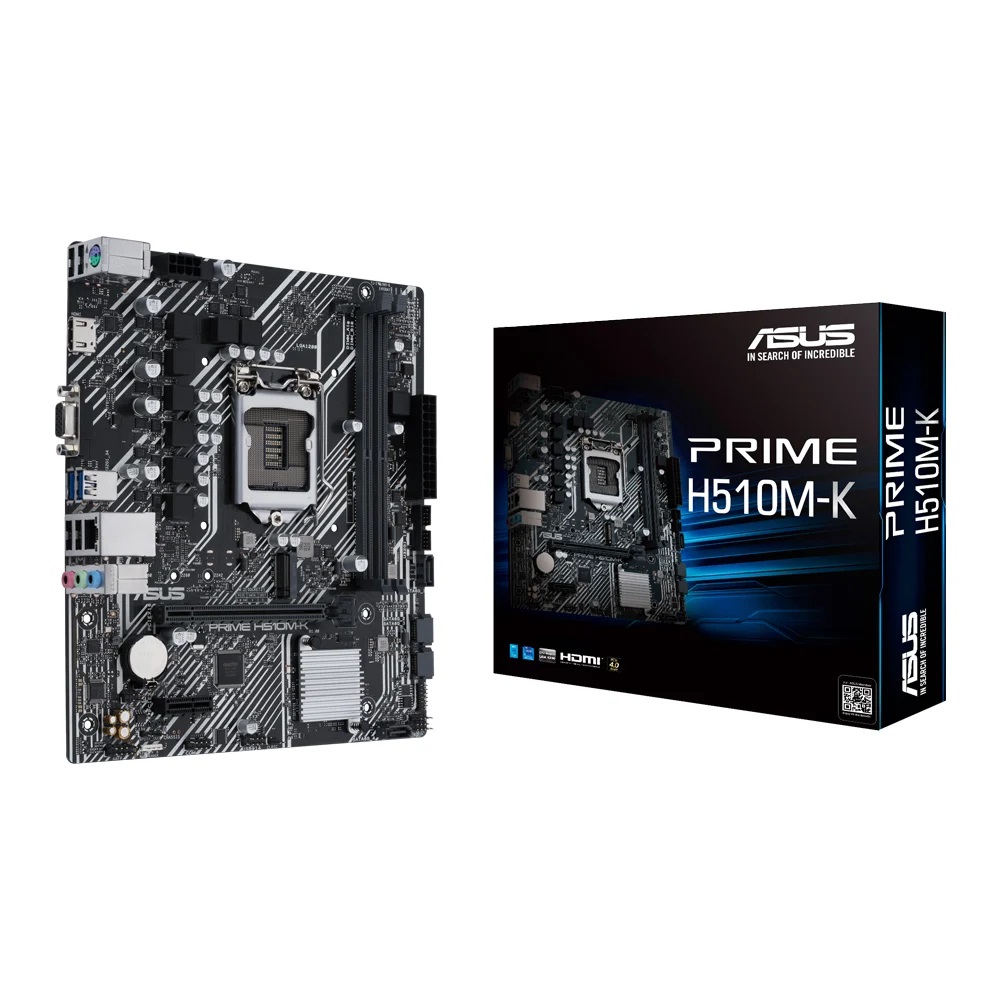

PRIME H510M-K REV2.0
|
| CPU Support |
Intel Socket LGA1200 for 11th Gen
Intel Core™ Processors & 10th Gen
Intel Core™, Pentium Gold and Celeron Processors*
• Supports Intel 14 nm CPU
( * Refer to www.asus.com for CPU support list. )
• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 **
|
| Socket |
1200
|
| Chipset |
Intel H470 Chipset
|
| Graphics |
1 x VGA port
1 x HDMI port**
* Graphics specifications may vary between CPU types.
** Only Intel 11th Gen processors support HDMI 2.1 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.
|
| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC*
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
Audio Features
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
|
| Expansion Slots |
Intel 11 &10 Gen Processors*
1 x PCIe 4.0/3.0 x16 slot
• Intel® 11th Gen processors support PCIe 4.0 x16
• Intel® 10th Gen processors support PCIe 3.0 x16
Intel H470 Chipset
1 x PCIe 3.0 x1 slot
|
| M.2 Slot |
1 Slot
|
| USB |
Rear USB (Total 6 ports)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 6 ports)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
|
| LAN |
1 x Realtek 1Gb Ethernet
|
| Wireless Data Network |
None
|
| Form Factor |
micro-ATX Form Factor
8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm )
|
| BIOS |
128 Mb Flash ROM, UEFI AMI BIOS
|
| Special Features |
ASUS 5X PROTECTION III
• DIGI+ VRM
• LANGuard
• Overvoltage Protection
• SafeSlot Core
• Stainless-Steel Back I/O
ASUS Q-Design
• Q-DIMM
• Q-LED Core
• Q-Slot
ASUS Thermal Solution
• Aluminum heatsink design
ASUS Lighting Control
• RGB header
|
| Software Features |
ASUS Exclusive Software
Armoury Crate
AI Suite 3
• Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert
• EZ update
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
|
| Operating System Support |
Windows 10 64-bit
|
