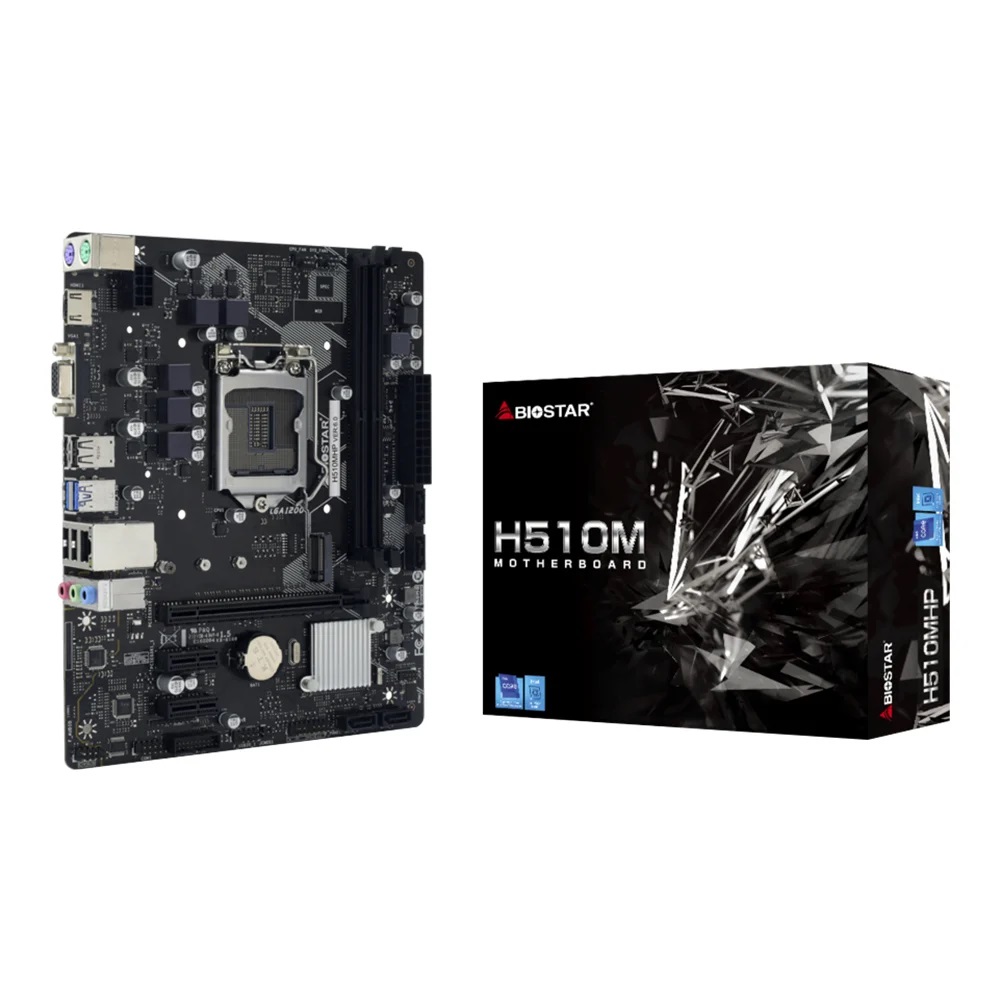

H510MHP

Socket 1200 for 10th / 11th Gen Intel Core™, Pentium and Celeron processors
* Please refer to www.biostar.com.tw for CPU support list.

1200

Intel H510

Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2933/ 3200
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
* Please refer to www.biostar.com.tw for Memory support list.

DDR4

1866 / 2133 / 2400 / 2666 / 2933 / 3200 MHz

2 Slots

Supports DX12
Supports HDCP

N/A

Realtek ALC887
7.1 Channels, High Definition Audio

2 x PCIe 3.0 x1 Slot
1 x PCle 3.0/4.0 x16 Slot
*The PCle 4.0 only depends on Rocket Lake CPUs.

4 x SATA III Connector (6Gb/s)
1 x M.2 (M Key) Socket:
Supports M.2 Type 2242/ 2260/ 2280 SSD module.
Supports PCIe 3.0 x 4 (32Gb/s) & SATA III (6Gb/s) SSD
* When using SATA SSD module on PCIe-M2_1 slot, the SATA_1 connector will be disabled.

4 x USB 3.2(Gen1) ports (2 on rear I/Os and 2 via internal headers)
6 x USB 2.0 ports (4 on rear I/Os and 2 via internal headers)

4 x SATA III Connectors (6Gb/s)
1 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Clear CMOS Header
1 x COM Port Header

1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x HDMI Port
1 x VGA Port
2 x USB 3.2 (Gen1) Ports
4 x USB 2.0 Ports
1 x LAN port
3 x Audio Jack

Intel I219V
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

None

Micro ATX Form Factor Dimension: 18.5cm x 22.6cm ( W x L )

CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
CPU/DDR Voltage Monitoring

N/A

N/A

BullGuard

Supports Windows 10 (64bit) / 11(64bit)
* Biostar reserves the right to add or remove support for any OS with or without notice.
