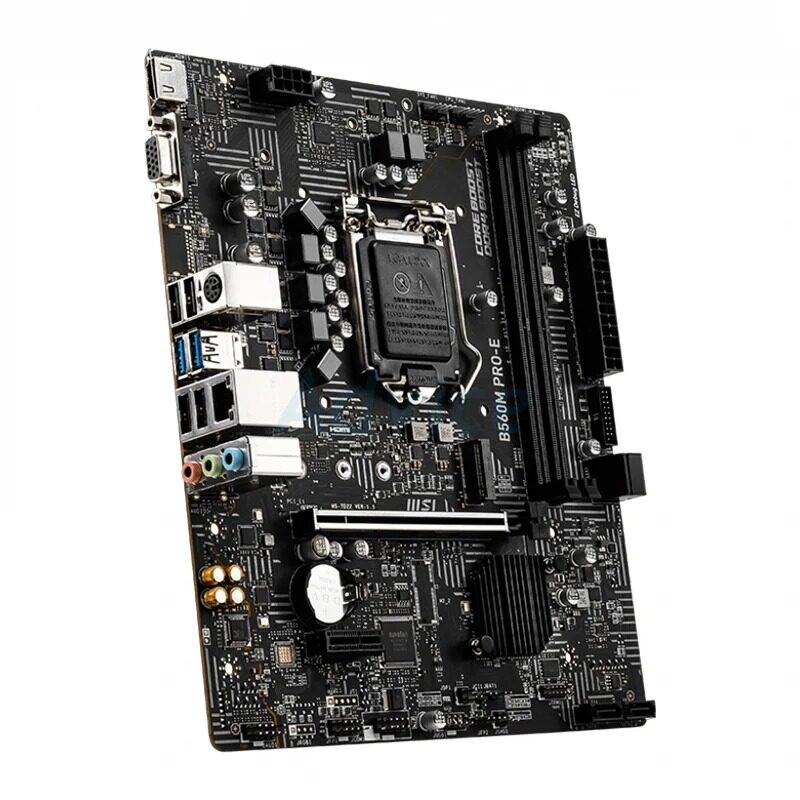

B560M PRO-E

Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core ™ Processors, Pentium® Gold and Celeron® Processors
Processor socket LGA1200

1200

Intel B560

2x DDR4 memory slots, support up to 64GB
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Max overclocking frequency:
- 1DPC 1R Max speed up to 4800 MHz
- 1DPC 2R Max speed up to 4600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

DDR4

2133 / 2666 / 2933 / 3200 MHz

2 Slots

1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz

None

Realtek® ALC897 Codec
7.1-Channel High Definition Audio

1x PCIe x16 slot (From CPU)
- Support up to PCIe 4.0 for 11th Gen Intel® CPU
- Support up to PCIe 3.0 for 10th Gen Intel® CPU
1x PCIe 3.0 x1 slot (From PCH)

4x SATA 6Gb/s ports (From B560 Chipset)
1x M.2 slot (Key M)
M2_1 slot (From B560 Chipset)
- Supports up to PCIe 3.0 x4
- Supports SATA 6Gb/s*
- Supports 2242/ 2260/ 2280 storage devices

*SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (4 Type-A ports on the back panel,2 ports available through the internal USB 2.0 connectors)

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x System panel connectors
1x Serial port connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector

1x HDMI
1x VGA
1x Mouse / Keyboard
1x LAN port
3x Audio connector
4x USB 2.0
2x USB 3.2 Gen 1 5Gbps Type-A

1x Intel^® I219V 1Gbps LAN controller

None

mATX Form Factor
9.29 in. x 7.95 in. (23.6 cm x 20.2 cm)

N/A

N/A

N/A

N/A

Windows® 10 64-bit
