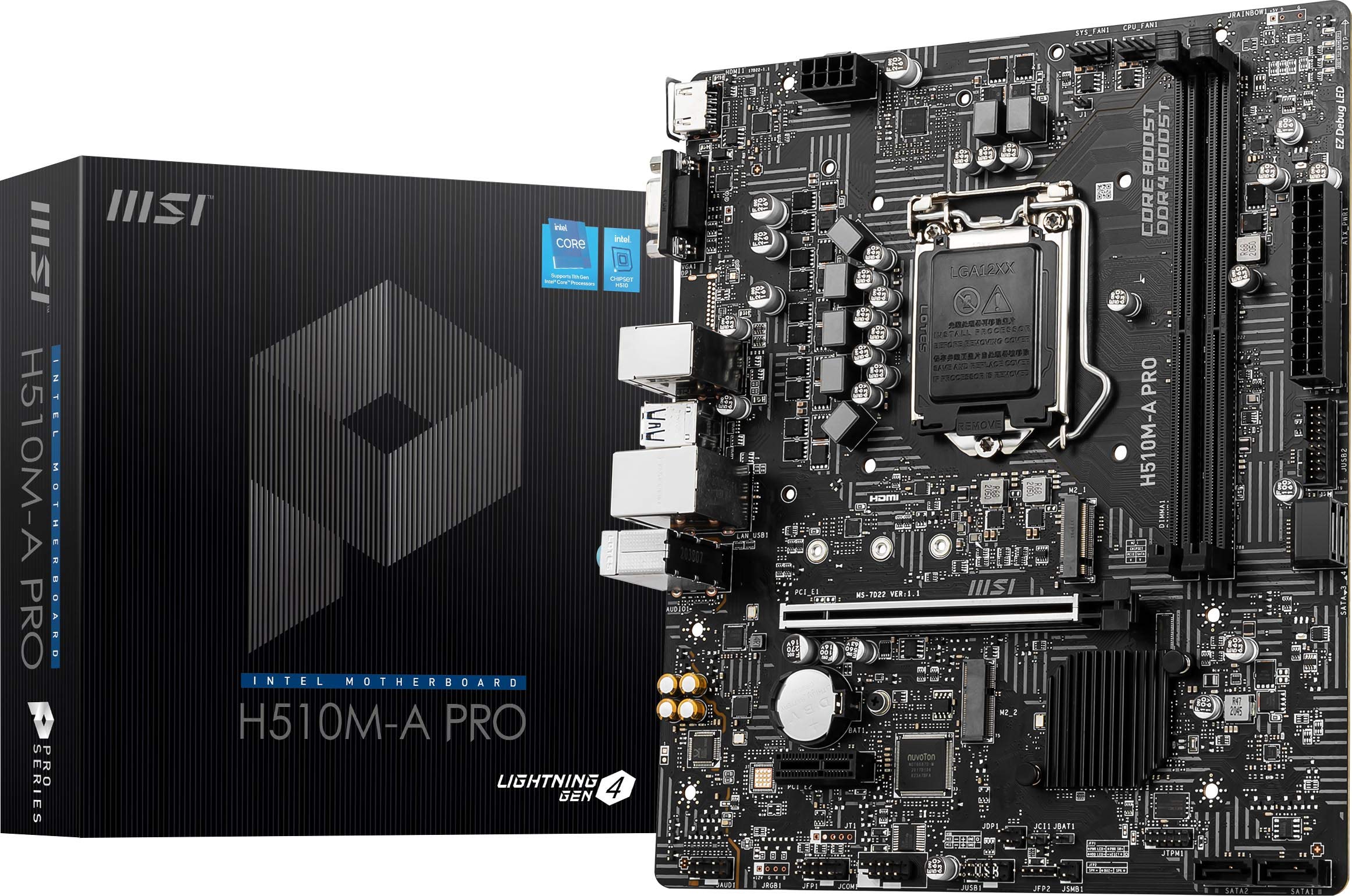

H510M-A PRO

Supports 10th Gen Intel^® Core™ Processors, 11th Gen Intel^® Core™ Processors, Pentium^® Gold and Celeron^® Processors

1200

Intel H510

2 x DDR4 memory slots, support up to 64GB
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

DDR4

3200 / 2933 / 2666 / 2400 / 2133 MHz

2 Slots

1 x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz *,**
1 x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz *

* Available only on processors featuring integrated graphics.
** Graphics specifications may vary depending on the CPU installed.

None

Realtek® ALC897 Codec
7.1-Channel High Definition Audio

1 x PCIe x16 slot (From CPU)
- Support up to PCIe 4.0 for 11th Gen Intel® CPU
- Support up to PCIe 3.0 for 10th Gen Intel® CPU
1 x PCIe 3.0 x1 slot (From PCH)
1 x M.2 slot with E key for WiFi module only(M2_2)

4 x SATA 6Gb/s ports (From H510 Chipset)
1 x M.2 slot (Key M)
M2_1 slot (From H510 Chipset) *
- Supports up to PCIe 3.0 x4
- Supports 2242/ 2260/ 2280 storage devices
* SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

Intel® H510 Chipset
4 x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
6 x USB 2.0 ports (4 Type-A ports on the back panel(hub- GL850G), 2 ports available through the internal USB 2.0 connector)

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin system fan connector
1 x Front panel audio connector
2 x System panel connectors
1 x Serial port connector
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
1 x TPM module connector

1 x HDMI
1 x VGA
1 x Mouse / Keyboard
1 x LAN port
3 x Audio connector
4 x USB 2.0
2 x USB 3.2 Gen 1 5Gbps Type-A

1 x Intel^® I219V 1Gbps LAN controller

None

mATX Form Factor
9.29 x 7.95 in. (23.6 cm x 20.2 cm)

N/A

N/A

N/A

N/A

Support for Windows 10 64-bit
