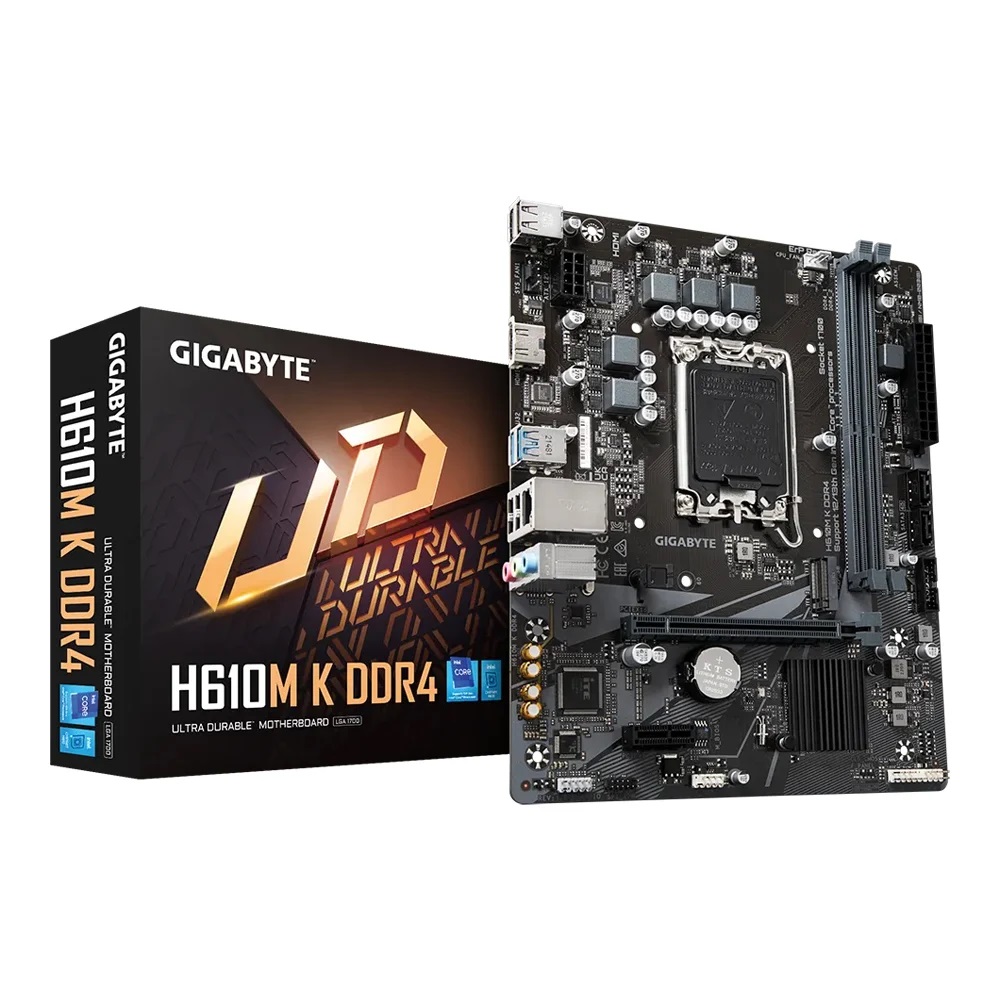

คุณสมบัติ MAINBOARD (1700) GIGABYTE H610M K DDR4 (REV. 1.0)

Brand GIGABYTE               ราคา 2,440 บาท Inc.Vat
Model

H610M K DDR4 (rev. 1.0)

CPU Support
  1. LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
  2. L3 cache varies with CPU

* Please refer to "CPU Support List" for more information.

Socket

1700

Chipset

Intel® H610 Express Chipset

Memory Support
  1. Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
  2. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

Memory Type

DDR4

Memory Bus

 3200/3000/2933/2666/2400/2133 MT/s

Maximum Memory Bus

3200

Memory Slot

2

Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.0 version and HDCP 2.3.

(Graphics specifications may vary depending on CPU support.)

Audio
  1. Realtek® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Expansion Slots

CPU:

  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Chipset:

  1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Maximum PCIe Version

PCIe 4.0

Storage



Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
  2. 2 x SATA 6Gb/s connectors
M.2 Storage Type Support

PCIe 3.0

USB

Chipset:

  1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x system fan header
  5. 1 x M.2 Socket 3 connector
  6. 2 x SATA 6Gb/s connectors
  7. 1 x front panel header
  8. 1 x front panel audio header
  9. 1 x USB 3.2 Gen 1 header
  10. 1 x USB 2.0/1.1 header
  11. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  12. 1 x Clear CMOS jumper
Back Panel Connectors
  1. 1 x HDMI port
  2. 2 x USB 3.2 Gen 1 ports
  3. 4 x USB 2.0/1.1 ports
  4. 1 x RJ-45 port
  5. 3 x audio jacks
LAN

Realtek® GbE LAN chip (1 Gbps/100 Mbps)

Form Factor

Micro ATX Form Factor; 22.6cm x 18.5cm

H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Special Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash
  3. Support for Xpress Install
Software Features
  1. Norton® Internet Security (OEM version)
  2. LAN bandwidth management software
Operating System Support

Support for Windows 11 64-bit
Support for Windows 10 64-bit

Package Contents

N/A

Package Dimension (W x D x H) : 24.50 x 27.00 x 5.00 cm
Gross Weight 0.61 KG
Volume 0.00 cm3

ประกัน 3Y
