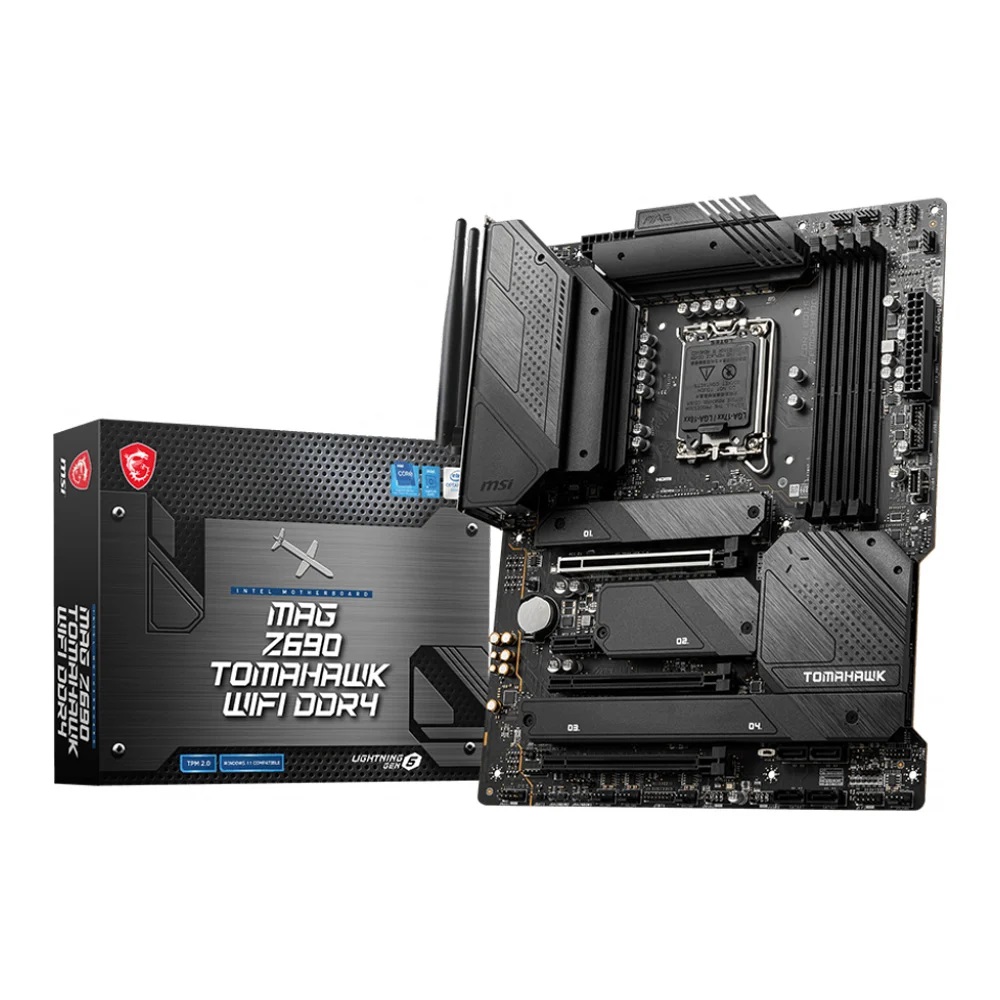

MAG Z690 TOMAHAWK WIFI D4

Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors
Processor socket LGA1700

1700

Intel Z690

4 x DDR4 memory slots, support up to 128GB 1
Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
Max overclocking frequency:
- 1DPC 1R Max speed up to 5200+ MHz
- 1DPC 2R Max speed up to 4800+ MHz
- 2DPC 1R Max speed up to 4400+ MHz
- 2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

DDR4

3200 / 2933 / 2666 / 2400 / 2133 MHz

4 Slots

1 x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
1 x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz

Supports AMD® CrossFire™ Technology

Realtek® ALC4080 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output

3 x PCIe x16 slots
PCI_E1 (From CPU)
Support up to PCIe 5.0 x16
PCI_E3 (From Z690 chipset)
Support up to PCIe 3.0 x4
PCI_E4 (From Z690 chipset)
Support up to PCIe 3.0 x1
1 x PCIe 3.0 x1 slot (From Z690 chipset)

6 x SATA 6Gb/s ports (From Z690 chipset)
4 x M.2 slots (Key M)
M2_1 slot (From CPU)
- Supports up to PCIe 4.0 x4
- Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (From Z690 chipset)
- Supports up to PCIe 4.0 x4
- Supports 2242/ 2260/ 2280 storage devices
M2_3 slot (From Z690 chipset)
- Supports up to PCIe 3.0 x4
- Supports up to SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
M2_4 slot (From Z690 chipset)
- Supports up to PCIe 4.0 x4
- Supports up to SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
- Intel® Optane™ Memory Ready for M.2 slots from Z690 Chipset
Supports Intel® Smart Response Technology for Intel Core™ processors

Intel® Z690 Chipset
1 x USB3.2 Gen2x2 20Gbps Type-C port on the back panel
4 x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector, 3 Type-A ports on the back panel)
4 x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal connector)
1 x USB 2.0 Type-A port on the back panel

Hub-GL850G
5 x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors)

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
6 x SATA 6Gb/s connectors
4 x M.2 slots (M-Key)
1 x USB 3.2 Gen 2 10Gbps Type-C port
1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2 x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin water-pump fan connector
6 x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x TPM module connector
1 x Clear CMOS jumper
1 x TBT connector (supports RTD3)
1 x Tuning Controller connector

1 x DisplayPort 1.4
1 x HDMI 2.1
2 x USB 2.0
2 x USB 3.2 Gen 2 10Gbps Type-A
2 x USB 3.2 Gen 1 5Gbps Type-A
1 x USB 3.2 Gen 2 10Gbps Type-A
1 x USB 3.2 Gen 2x2 20Gbps Type-C
1 x 2.5G LAN Port
1 x Wi-Fi / Bluetooth Antenna
5 x HD Audio Connectors
1 x Flash BIOS Button
1 x ptical S/PDIF OUT

1 x Intel® I225V 2.5Gbps LAN controller

Intel® Wi-Fi 6
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.2

ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)

N/A

N/A

N/A

N/A

Support for Windows® 11 64-bit, Windows® 10 64-bit
