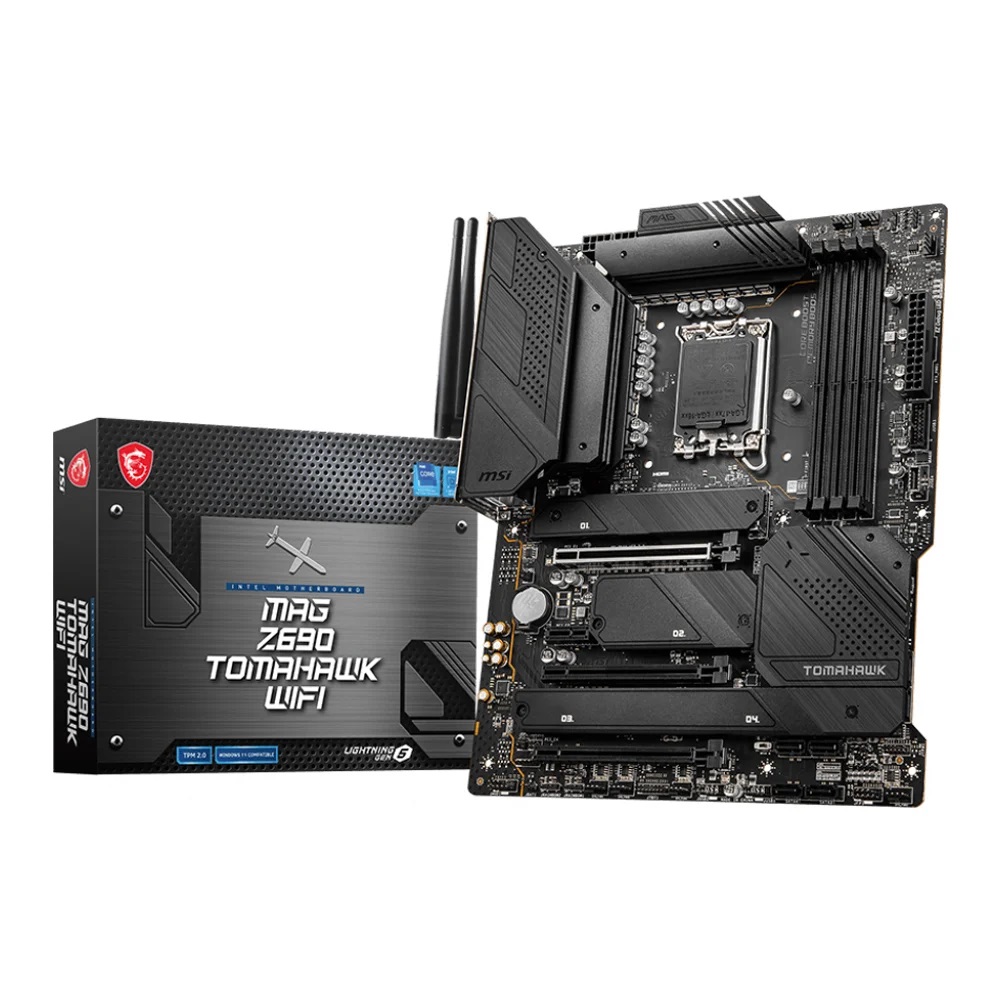

MAG Z690 TOMAHAWK WIFI

Supports 12th Gen Intel Core, Pentium Gold and Celeron processors
Processor socket LGA1700

1700

Intel Z690

4x DDR5 memory slots, supporting up to 128GB
Supports 1R 4800 MHz (by JEDEC & POR)
Max overclocking frequency:
- 1DPC 1R Max speed up to 6400+ MHz
- 1DPC 2R Max speed up to 5400+ MHz
- 2DPC 1R Max speed up to 4000+ MHz
- 2DPC 2R Max speed up to 4000+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

DDR5

4800 MHz

4 Slots

1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz

Supports AMD CrossFire Technology

Realtek ALC4080 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output

3 x PCIe x16 slots
PCI_E1 (From CPU)
Support up to PCIe 5.0 x16
PCI_E3 (From Z690 chipset)
Support up to PCIe 3.0 x4
PCI_E4 (From Z690 chipset)
Support up to PCIe 3.0 x1
1 x PCIe 3.0 x1 slot (From Z690 chipset)

6 x SATA 6Gb/s ports (From Z690 chipset)
4 x M.2 slots (Key M)
M2_1 slot (From CPU)
-Supports up to PCIe 4.0 x4
-Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (From Z690 chipset)
-Supports up to PCIe 4.0 x4
-Supports 2242/ 2260/ 2280 storage devices
M2_3 slot (From Z690 chipset)
-Supports up to PCIe 3.0 x4
-Supports up to SATA 6Gb/s
-Supports 2242/ 2260/ 2280 storage devices
M2_4 slot (From Z690 chipset)
-Supports up to PCIe 4.0 x4
-Supports up to SATA 6Gb/s
-Supports 2242/ 2260/ 2280 storage devices
-Intel Optane Memory Ready for M.2 slots from Z690 Chipset
Supports Intel Smart Response Technology for Intel Core processors

Intel® Z690 Chipset
1 x USB3.2 Gen2x2 20Gbps Type-C port on the back panel
4 x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector, 3 Type-A ports on the back panel)
4 x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal connector)
1 x USB 2.0 Type-A port on the back panel

Hub-GL850G
5 x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors)

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
6 x SATA 6Gb/s connectors
4 x M.2 slots (M-Key)
1 x USB 3.2 Gen 2 10Gbps Type-C port
1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2 x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin water-pump fan connector
6 x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x TPM module connector
1 x Clear CMOS jumper
1 x TBT connector (supports RTD3)
1 x Tuning Controller connector

1 x DisplayPort 1.4
1 x HDMI 2.1
2 x USB 2.0
2 x USB 3.2 Gen 2 10Gbps Type-A
2 x USB 3.2 Gen 1 5Gbps Type-A
1 x USB 3.2 Gen 2 10Gbps Type-A
1 x USB 3.2 Gen 2x2 20Gbps Type-C
1 x 2.5G LAN
1 x Wi-Fi / Bluetooth Antenna
5 x HD Audio Connectors
1 x Flash BIOS Button
1 x Optical S/PDIF OUT

1x Intel I225V 2.5Gbps LAN controller

Intel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.2

ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)

N/A

N/A

N/A

N/A

Support for Windows® 11 64-bit, Windows® 10 64-bit
