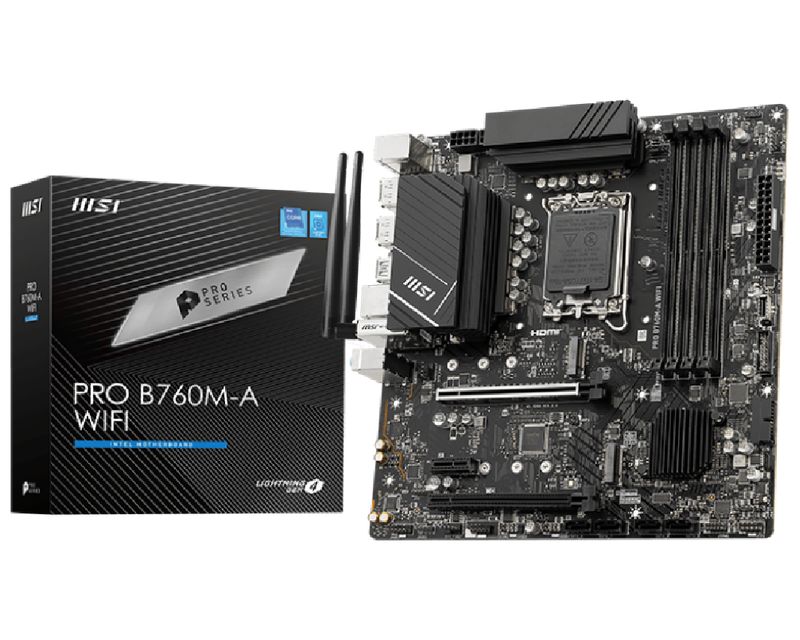

คุณสมบัติ MAINBOARD (1700) MSI PRO B760M-A WIFI DDR5

CHIPSET    INTEL B760               ราคา 5,290 บาท Inc.Vat
CPU SUPPORT    Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700

MEMORY    4x DDR5, Maximum Memory Capacity 192GB

Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

     Max. overclocking frequency:
     • 1DPC 1R Max speed up to 6800+ MHz
     • 1DPC 2R Max speed up to 6400+ MHz
     • 2DPC 1R Max speed up to 6000+ MHz
     • 2DPC 2R Max speed up to 5600+ MHz
     Supports Intel® XMP 3.0 OC
     Supports Dual-Controller Dual-Channel mode
     Supports non-ECC, un-buffered memory

ONBOARD GRAPHICS    2x HDMI™
     Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
     2x DisplayPort
     Support DP 1.4, maximum resolution of 4K 60Hz*
     *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT    2x PCI-E x16 slot (Qty)
     1x PCI-E x1 slot (Qty)
     PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
     PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
     PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

STORAGE    2x M.2 (Qty)
     M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
     M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
     4x SATA 6G (Qty)
     * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

RAID    Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB    2x USB 2.0 (Rear)
     4x USB 2.0 (Front)
     2x USB 3.2 Gen1 Type A (Rear)
     4x USB 3.2 Gen1 Type A (Front)
     1x USB 3.2 Gen1 Type C (Front)
     2x USB 3.2 Gen2 Type A (Rear)

LAN    Realtek® RTL8125BG 2.5G LAN

WIRELESS / BLUETOOTH    Intel® Wi-Fi 6E
     The Wireless module is pre-installed in the M.2 (Key-E) slot
     Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
     Supports 802.11 a/ b/ g/ n/ ac/ ax

     Supports Bluetooth® 5.3, FIPS, FISMA

     * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
     ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

AUDIO    Realtek® ALC897 Codec
     7.1-Channel High Definition Audio

INTERNAL I/O    1x Power Connector(ATX_PWR)
     2x Power Connector(CPU_PWR)
     1x CPU Fan
     1x Pump Fan
     2x System Fan
     2x Front Panel (JFP)
     1x Chassis Intrusion (JCI)
     1x Front Audio (JAUD)
     1x Com Port (JCOM)
     2x Addressable V2 RGB LED connector (JARGB_V2)
     1x RGB LED connector(JRGB)
     1x TPM pin header(Support TPM 2.0)
     4x USB 2.0 ports
     4x USB 3.2 Gen1 Type A ports
     1x USB 3.2 Gen1 Type C ports

LED FEATURE    4x EZ Debug LED

BACK PANEL PORTS    Keyboard / Mouse
     DisplayPort
     USB 3.2 Gen 1 5Gbps (Type-A)
     2.5G LAN
     Wi-Fi / Bluetooth
     Audio Connectors
     USB 2.0
     HDMI™
     USB 3.2 Gen 2 10Gbps (Type-A)

OPERATING SYSTEM    Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB DIMENSION    mATX
     243.84mmx243.84mm

ประกัน 3Y
ทางบริษัทฯ ขอสงวนสิทธิ์ ในการรับผิดชอบใดๆ อันเนื่องจากข้อผิดพลาดทางการพิมพ์ (ผิด/ตก)
ทางบริษัทฯ ขอสงวนสิทธิ์ ในการเปลี่ยนแปลงราคาและโปรโมชั่นโดยไม่แจ้งให้ทราบล่วงหน้า
