| Brand |
MSI ราคา 7,990 บาท Inc.Vat |
| Model |

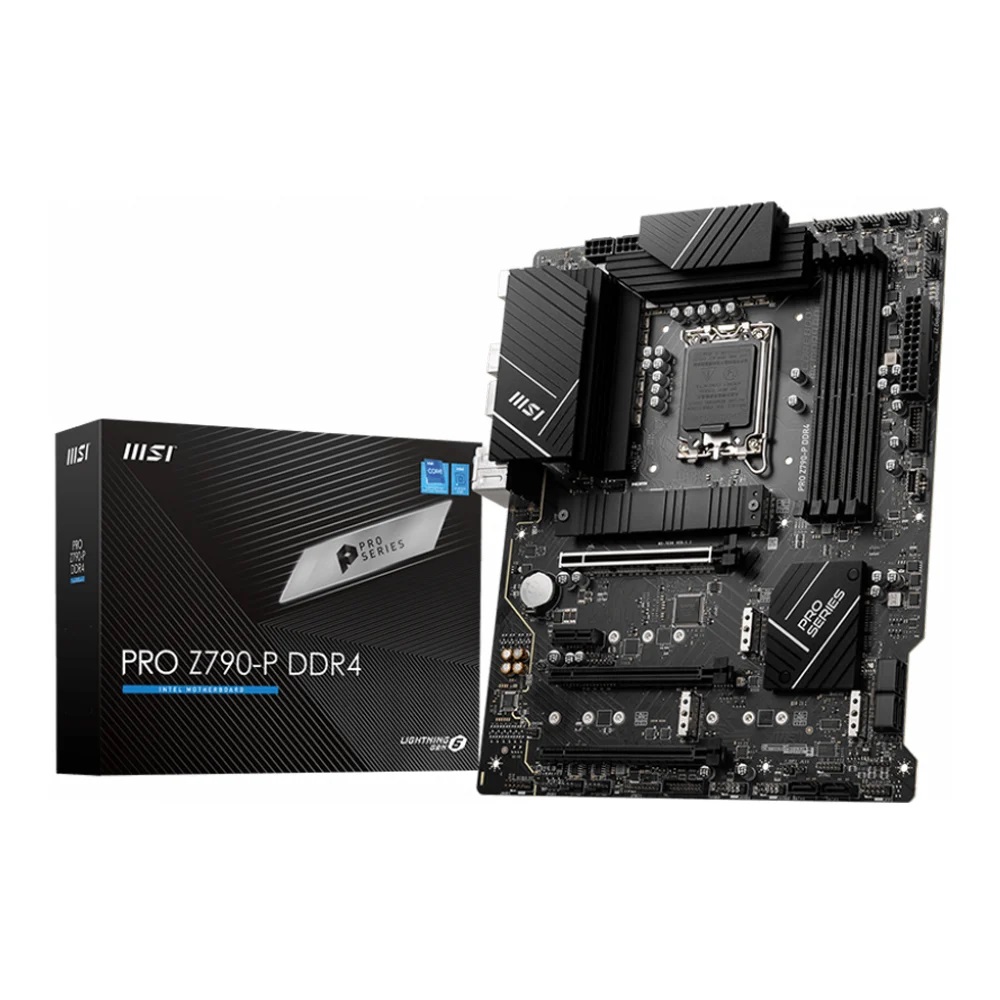

PRO Z790-P DDR4
|
| CPU Support |
Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700
|
| Socket |
1700
|
| Chipset |
INTEL Z790
|
| Memory Support |
4x DDR4, Maximum Memory Capacity 128GB
Memory Support 5333/5200/5066/5000/4800/4600/4533/4400/4266/4000/3866/3733/3600/3466/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133(By JEDCE & POR)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 5333+ MHz
• 1DPC 2R Max speed up to 4800+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
|
| Memory Type |
DDR4
|
| Memory Bus |
3200/3000/2933/2800/2666/2400/2133
|
| Memory Slot |
4
|
| Graphics |
1x HDMI™
1x DisplayPort
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
|
| Multi Graphic Support |
N/A
|
| Audio |
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
|
| Expansion Slots |
3x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 PCIe 3.0 supports up to x1 (From Chipset)
|
| Storage |
4x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
6x SATA 6G port
|
| USB |
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
|
| Internal I/O Connectors |
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
4x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C
|
| Back Panel Connectors |
Keyboard / Mouse
DisplayPort
USB 2.0
2.5G LAN
Audio Connectors
Flash BIOS Button
USB 2.0
HDMI™
USB 3.2 Gen 1 5Gbps (Type-A)
USB 3.2 Gen 2x2 20Gbps (Type-C)
USB 3.2 Gen 2 10Gbps (Type-A)
|
| LAN |
Intel® 2.5Gbps LAN
|
| Form Factor |
ATX
243.84mmx304.8mm
|
| H/W Monitoring |
N/A
|
| BIOS |
N/A
|
| Special Features |
N/A
|
| Software Features |
N/A
|
| Operating System Support |
Support for Windows® 11 64-bit, Windows® 10 64-bit
|
| Package Dimension |
(W x D x H) : 27.00 x 35.00 x 6.50 cm |
| Gross Weight |
1.50 KG |
| Volume |
6,142.50 cm3 |
