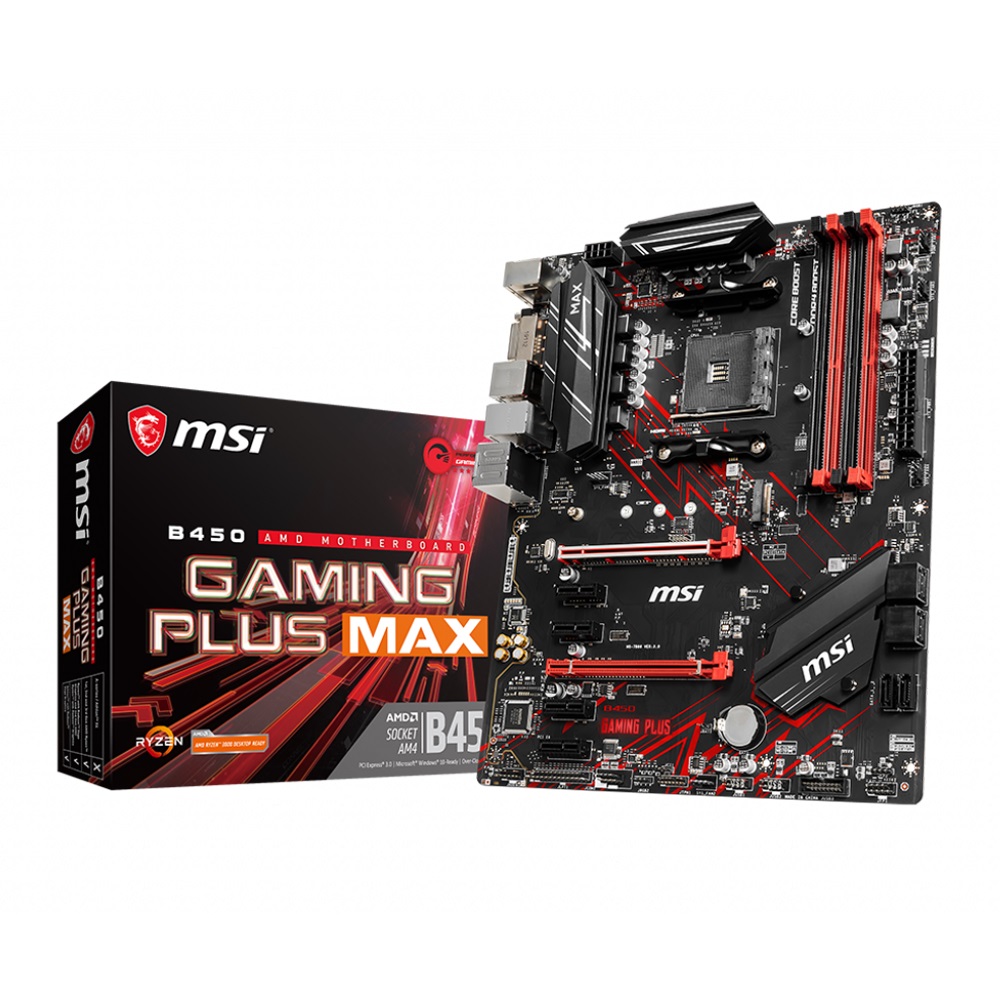

B450 GAMING PLUS MAX

Supports 1st, 2nd and 3rd Gen AMD Ryzen™, Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4

AM4

AMD B450

4 x DDR4 memory slots, support up to 64GB
Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
For AMD Ryzen Gen3 (R5/R7/R9)
- Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/4133 MHz (by A-XMP OC MODE)
For AMD Other CPU
- Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466MHz (by A-XMP OC MODE)

Dual channel memory architecture

Supports non-ECC UDIMM memory

Supports ECC UDIMM memory (non-ECC mode)

DDR4

2667 / 2400 / 2133 / 1866 MHz

4 Slots

1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hzz*

1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz**

* Only support when using Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics processors

** Maximum shared memory of 2048 MB

Supports 2-Way AMD® CrossFire™ Technology

Realtek® ALC892 Codec
- 7.1-Channel High Definition Audio

1 x PCIe 3.0 x16 slot (PCI_E1)
- 1st, 2nd and 3rd Gen AMD Ryzen™ support x16 mode
- Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support x8 mode
- Athlon™ with Radeon™ Vega Graphics support x4 mode

1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)*

4 x PCIe 2.0 x1 slots*

* PCI_E4 will run x1 speed when installing devices in PCI_E2/ PCI_E3/ PCI_E5 slot.

AMD® CPU
2 x SATA 6Gb/s ports*
1 x M.2 slot (Key M)*
- Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™, Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices

AMD® B450 Chipset
4 x SATA 6Gb/s ports

* SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot.

AMD® B450 Chipset
2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector
6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD® CPU
2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports)
1 x 4-pin CPU fan connector
1 x 4-pin water-pump-fan connector
4 x 4-pin system fan connectors
1 x TPM module connector
1 x Front panel audio connector
2 x System panel connectors
1 x Serial port connector
1 x Parallel port connector
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
2 x 5050 RGB LED strip 12V connectors

1 x PS/2 Combo Port
2 x USB 3.2 Gen1
1 x LAN Port
6 x HD Audio Connectors
1 x Flash BIOS Button
2 x USB 2.0 Ports
1 x DVI-D Port
1 x HDMI Port
2 x USB 3.2 Gen2

1 x Realtek® 8111H Gigabit LAN controller

12 in. x 9.6 in. (30.5 cm x 24.4 cm)
ATX Form Factor

Support for Windows® 10 64-bit
Support for Windows® 7 64-bit

* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
