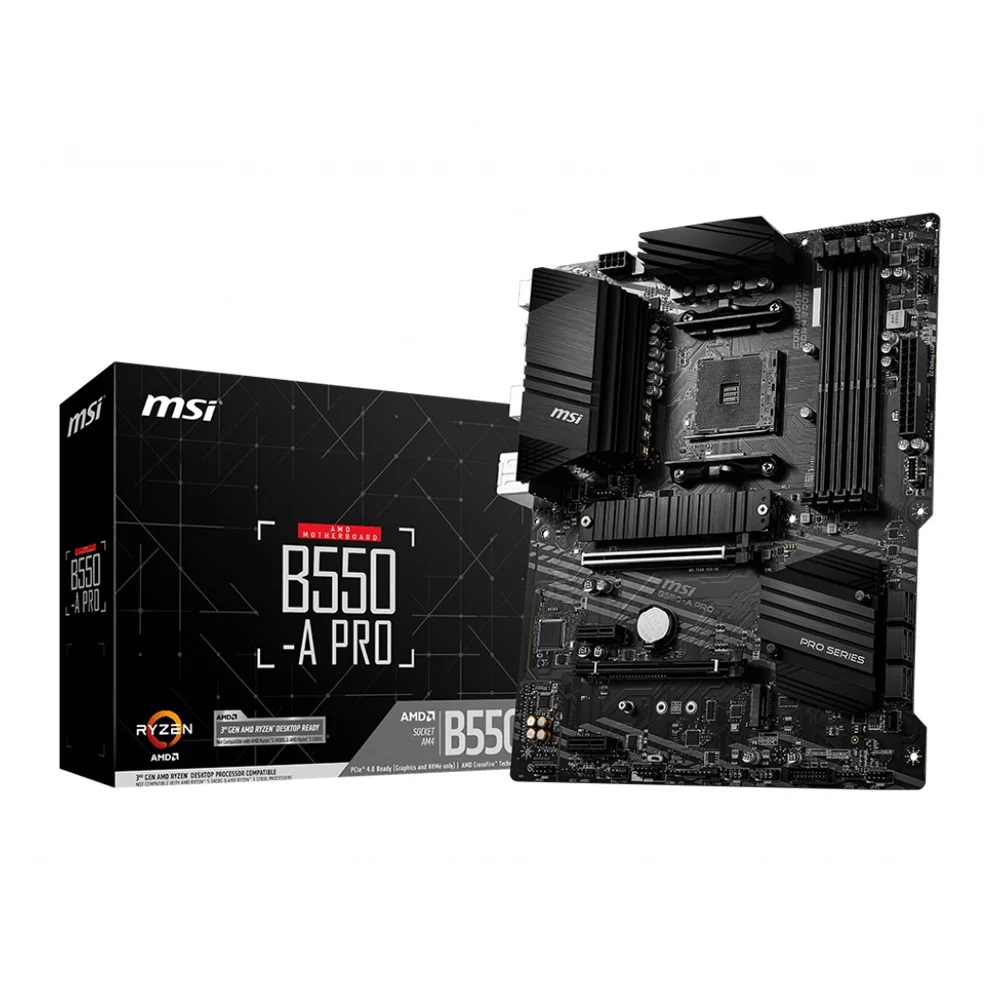

คุณสมบัติ MAINBOARD (AM4) MSI B550 A PRO DDR4

Brand MSI                     ราคา 4,450 บาท Inc.Vat
Model

B550-A PRO

CPU Support

Supports AM4 socket 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update.

Socket

AM4

Chipset

AMD B550

Memory Support

4x DDR4 memory slots, support up to 128GB
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
- 1DPC 1R Max speed 4800 MHz
- 1DPC 2R max speed 3866 MHZ
- 2DPC 1R max speed 4000 MHZ
- 2DPC 2R max speed 3600 MHZ
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory

Memory Type

DDR4

Memory Bus

3200 / 3066 / 3000 / 2933 / 2800 / 2667 / 2400 / 2133 / 1866 MHz

Memory Slot

4 Slots

Graphics

1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz*
1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz*
Maximum shared memory of 16GB
* Available for the processor with integrated graphics.

Multi Graphic Support

Supports 2-Way AMD CrossFire Technology

Audio

Realtek® ALC892 Codec
7.1-Channel High Definition Audio

Expansion Slots

1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)*
1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed**
2x PCIe 3.0 x1 slots

* The supported specification depends on installed processor.
** When installing PCIe SSD in M.2_2, PCI_E3 slot will be unavailable.

Storage

AMD B550 Chipset
6x SATA 6Gb/s ports
2x M.2 slots (Key M)
M2_1 slot (from AMD Processor)
- Supports PCIe 4.0/ 3.0 x4*
- Supports SATA 6Gb/s
- Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (from AMD B550 chipset)
- Supports PCIe 3.0x4
- Supports 2242/ 2260/ 2280 storage devices
* The supported specification depends on installed processor.

USB

AMD B550 Chipset
3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
8x USB 2.0 ports (4 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor
2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Internal I/O Connectors

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1xTPM module connector
1x Clear CMOS jumper

Back Panel Connectors

1x Keyboard / Mouse
1x DisplayPort
1x LAN
6x HD Audio Connectors
1x Flash BIOS Button
4x USB 2.0
1x HDMI
2x USB 3.2 Gen 1 5Gbps Type-A
2x USB 3.2 Gen 2 10Gbps Type-A+C

LAN

1x Realtek® 8111H Gigabit LAN controller

Wireless Data Network

None

Form Factor

ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)

H/W Monitoring

N/A

BIOS

N/A

Special Features

N/A

Software Features

N/A

Operating System Support

N/A

Dimension (W x D x H) : 24.40 x 30.50 x 4.80 cm
Net Weight 1.05 KG
Package Dimension (W x D x H) : 27.00 x 34.00 x 8.60 cm
Gross Weight 1.62 KG
Volume 7,894.80 cm3

ประกัน 3Y
