| Brand |
MSI ราคา 6,490 บาท Inc.Vat |
| Model |

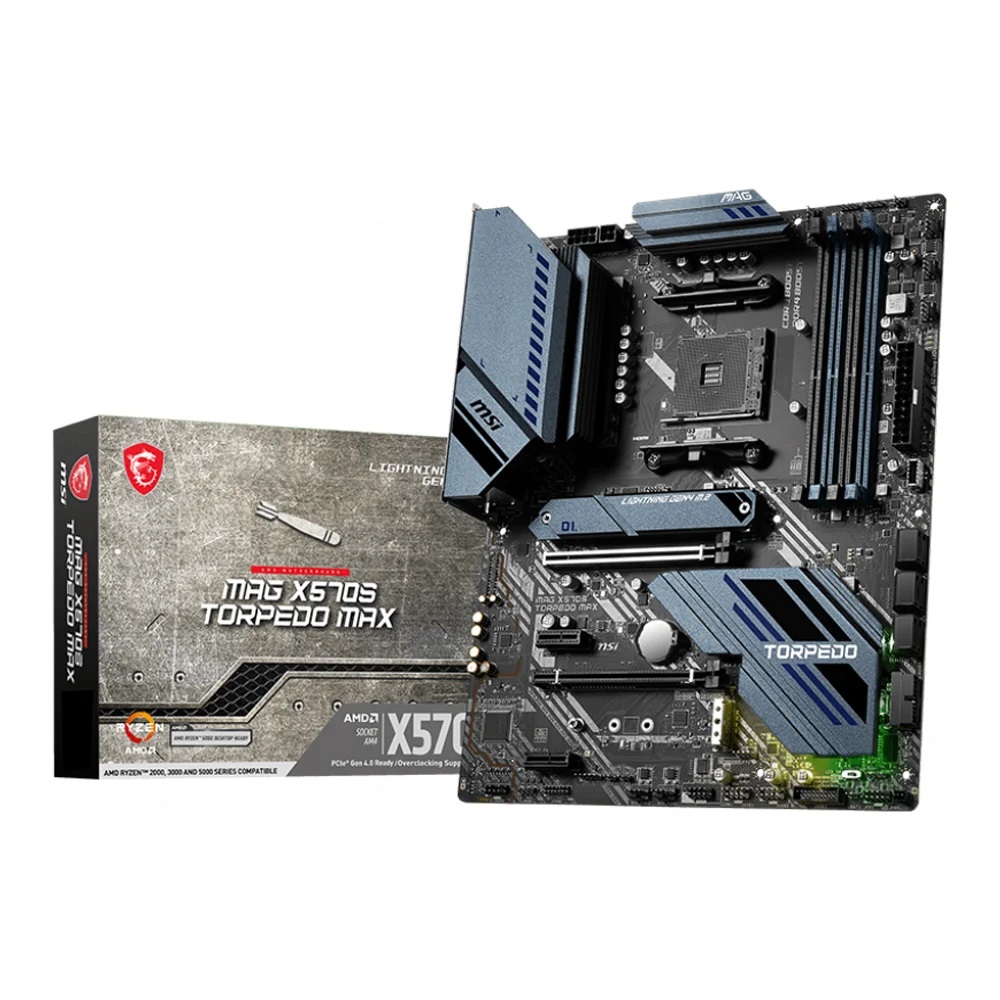

MAG X570S TORPEDO MAX
|
| CPU Support |
Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
Supports Socket AM4
|
| Socket |
AM4
|
| Chipset |
AMD X570
|
| Memory Support |
4x DDR4 memory slots, support up to 128GB
Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Max overclocking frequency by A-XMP OC mode:
For Ryzen™ 5000 G-Series & 4000 G-Series processors
- 1DPC 1R Max speed up to 5100 MHz
- 1DPC 2R Max speed up to 4000 MHz
- 2DPC 1R Max speed up to 4266 MHz
- 2DPC 2R Max speed up to 3600 MHz
For Ryzen™ 5000 Series & 3000 Series processors
- 1DPC 1R Max speed up to 5100 MHz
- 1DPC 2R Max speed up to 3866 MHz
- 2DPC 1R Max speed up to 4000 MHz
- 2DPC 2R Max speed up to 3600 MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
|
| Memory Type |
DDR4
|
| Memory Bus |
1866 / 2133 / 2400 / 2667 / 2800 / 2933 / 3000 / 3066 / 3200 MHz
|
| Memory Slot |
4 Slot
|
| Graphics |
1x HDMI 2.1 port, supports a maximum resolution of 4K 60Hz
|
| Multi Graphic Support |
Supports AMD CrossFire™ Technology
|
| Audio |
Realtek® ALC4080 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
|
| Expansion Slots |
Supports PCIe 4.0 / PCIe 3.0 specification
- PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors
1x PCIe x16 slot (From processor)
- PCI_E1 supports PCIe 4.0/ 3.0 x16
1x PCIe x16 slot (From X570 chipset)
- PCI_E3 supports PCIe 4.0/ 3.0 x4
2x PCIe 3.0 x1 slots (From X570 chipset)
|
| Storage |
6x SATA 6Gb/s ports (from AMD X570 Chipset)
2x M.2 slots (Key M)
Support up to PCIe 4.0 for AMD Ryzen™ 5000 Series and 3000 Series desktop processors
Support up to PCIe 3.0 for AMD Ryzen™ 5000 G-Series, 4000 G-Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processor
Supports up to SATA 6Gb/s
M2_1 slot (from Processor)
- Support 2280/22110 storage devices
M2_2 slot (from AMD X570 Chipset)
- Supports 2242/ 2260/ 2280 storage devices
|
| USB |
AMD X570 Chipset
3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector)
4x USB 3.2 Gen 1 5Gbps ports available through the internal USB 3.2 Gen 1 5Gbps connectors
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
AMD Processor
2x USB 3.2 Gen 2 10Gbps ports on the back panel (Type-A &Type-C)
2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
|
| Internal I/O Connectors |
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x 4-pin CPU fan connector
1x 4-pin water-pump connector
4x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
1x Serial port connector
1x Chassis Intrusion connector
|
| Back Panel Connectors |
1x PS/2 Mouse / Keyboard
2x USB 3.2 Gen 1 5Gbps (Type-A)
1x Gigabit LAN Port
1x 2.5G LAN Port
5x HD Audio Connectors
2x USB 2.0 Port
1x Flash BIOS Button
1x HDMI 2.1 Port
1x USB 3.2 Gen 2 10Gbps (Type-C)
3x USB 3.2 Gen 2 10Gbps (Type-A)
1x Optical S/PDIF OUT
|
| LAN |
1x Realtek® 8125B 2.5Gbps LAN Controller
1x Realtek® RTL8111H 1Gbps LAN Controller
|
| Wireless Data Network |
None
|
| Form Factor |
ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
|
| H/W Monitoring |
N/A
|
| BIOS |
N/A
|
| Special Features |
N/A
|
| Software Features |
N/A
|
| Operating System Support |
Support for Windows® 10 64-bit
|
| Dimension |
(W x D x H) : 24.40 x 30.50 x 4.80 cm |
| Net Weight |
1.30 KG |
| Package Dimension |
(W x D x H) : 27.00 x 34.00 x 7.00 cm |
| Gross Weight |
1.89 KG |
| Volume |
6,426.00 cm3 |
