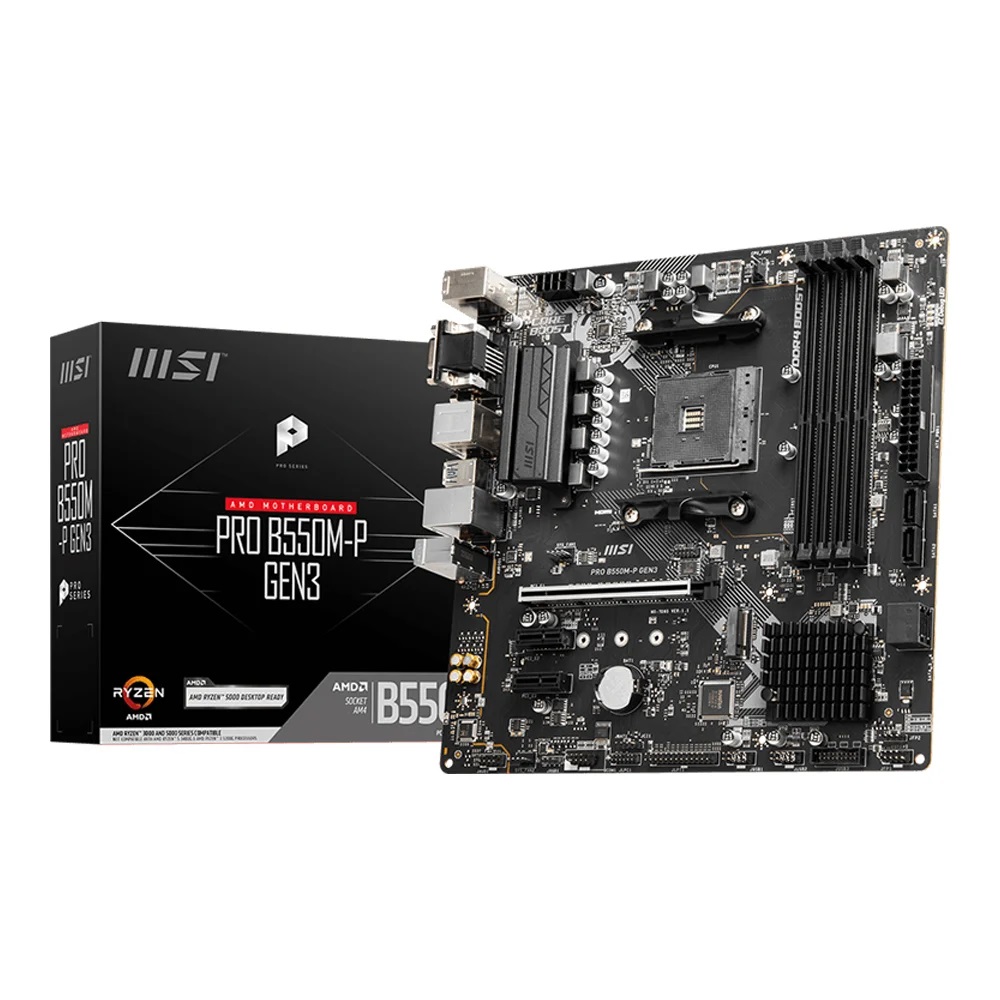

คุณสมบัติ MAINBOARD (AM4) MSI PRO B550M-P GEN3 DDR4

Brand MSI                 ราคา 3,090 บาท Inc.Vat
Model

PRO B550M-P GEN3

CPU Support

Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors

Socket

AM4

Chipset

AMD® B550 Chipset

Memory Support

4x DDR4 memory slots, supporting up to 128GB* 1
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
1DPC 1R max speed 4400 MHz
1DPC 2R max speed 3733 MHz
2DPC 1R max speed 3866 MHz
2DPC 2R max speed 3466 MHz
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory
Please refer www.msi.com for more information on compatible memory.
See supported memory

Maximum Memory Bus

4400

Graphics

1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1
1x HDMI™ 1.4 port, supporting a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz 1 2
1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz 1 2
Maximum shared memory of 16 GB
Available only on processors featuring integrated graphics.
Graphics specifications may vary depending on the CPU installed.

Multi Graphic Support

None

Audio

Realtek® ALC897 Codec
7.1-Channel High Definition Audio

Expansion Slots

1x PCIe 3.0 x16 slot (From CPU)
2x PCIe 3.0 x1 slots (From AMD B550 chipset)

Maximum PCIe Version

PCIe 3.0

Storage

4x SATA 6Gb/s ports (From AMD B550 Chipset)
1x M.2 slot (Key M)
M2_1 slot (From CPU)
Supports PCIe 3.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices

M.2 Storage Type Support

PCIe 3.0

USB

1x USB 3.2 Gen 1 5Gbps connectors (From AMD B550 Chipset)
Supports additional 2 USB 3.2 Gen 1 5Gbps ports
2x USB 2.0 Type-A connectors (From AMD B550 Chipset)
Supports additional 4 USB 2.0 ports

Internal I/O Connectors

1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Serial port connector
1x Parallel port connector
1x TPM module connector

Back Panel Connectors

Keyboard / Mouse
VGA
USB 2.0
USB 3.2 Gen 1 5Gbps Type-A
LAN port
Audio connector
USB 2.0
DVI-D
HDMI™
USB 3.2 Gen 1 5Gbps Type-A

LAN

1x Realtek® RTL8111H 1Gbps LAN controller

Wireless Data Network

None

Form Factor

m-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

H/W Monitoring

CPU/ System/ Chipset temperature detection
CPU/ System fan speed detection
CPU/ System fan speed control

BIOS

1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.1, SMBIOS 2.8
Multi-language

Special Features

1x 4-pin RGB LED connector
4x EZ Debug LED

Software Features

MSI Center

Operating System Support

Support for Windows® 11 64-bit, Windows® 10 64-bit

Package Contents

N/A

Package Dimension (W x D x H) : 27.00 x 28.50 x 6.50 cm
Gross Weight 0.93 KG
Volume 0.00 cm3

ประกัน 3Y
