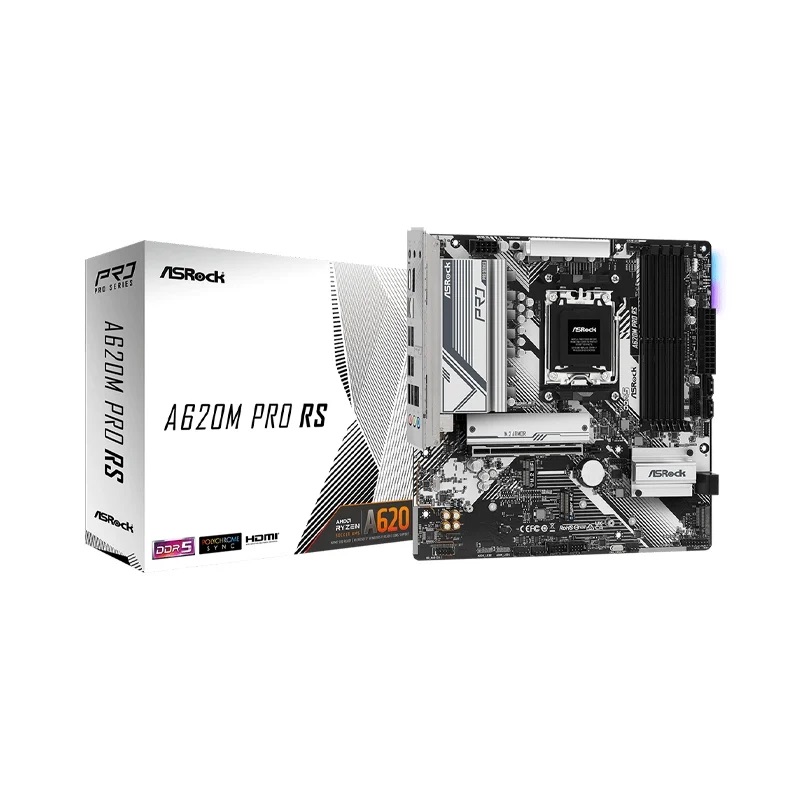

A620M Pro RS

- Supports AMD Socket AM5 Ryzen™ 7000 Series Processors

AMD

AM5

- AMD A620

- Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 non-ECC, un-buffered memory up to 6000+(OC)
- Max. capacity of system memory: 128GB
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

6000

Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS / FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

N/A

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio

CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
* Chipset:
- 1 x M.2 Socket (Key E), supports type 2230 WiFi / BT PCIe WiFi module
* Supports NVMe SSD as boot disks
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)


PCIe 4.0

CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260 / 2280 PCIe Gen4x4 (64 Gb / s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260 / 2280 PCIe Gen4x4 (64 Gb / s) mode
* Chipset:
- 1 x M.2 Socket (M2_3, Key M), supports type 2260 / 2280 PCIe Gen3x2 (16 Gb / s) mode*
- 4 x SATA3 6.0 Gb / s Connectors
* Supports NVMe SSD as boot disks

PCIe 4.0

3

- 3 x USB 3.2 Gen1 Type-A Ports
- 1 x USB 3.2 Gen1 Type-C Port
- 4 x USB 2.0 Ports
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen1 Header* Supports in total up to 12V / 3A, 36W LED

- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU / Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 3 x Chassis / Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen1 Header* Supports in total up to 12V / 3A, 36W LED Strip** Support in total up to 5V / 3A, 15W LED Strip*** CPU_FAN1 supports the fan power up to 1A (12W).
**** CPU_FAN2 / WP supports the fan power up to 2A (24W).*
**** CHA_FAN1~3 / WP support the fan power up to 2A (24W).*
**** CPU_FAN2 / WP and CHA_FAN1~3 / WP can auto detect if 3-pin or 4-pin fan is in use.


- 2 x Antenna Mounting Points
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 3 x USB 3.2 Gen1 Type-A Ports
- 1 x USB 3.2 Gen1 Type-C Port
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- HD Audio Jacks: Line in / Front Speaker / Microphone

- Gigabit LAN 10 / 100 / 1000 Mb / s
- Realtek 8111H

N/A

Micro ATX

N/A

- 256Mb AMI UEFI Legal BIOS with GUI support

Superb Productivity
- Dual Channel DDR5 Rock-Solid Durability
- 6+2+1 Power Phase, 50A Dr.MOS
- Pre-Installed I / O Shield EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer EZ Troubleshooter
- ASRock Post Status Checker< / a>

Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Polychrome SYNC
- ASRock XFast LAN
UEFI
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.

- Microsoft Windows 10 64-bit / 11 64-bit

- 1 x User Manual
- 2 x SATA Data Cables
- 4 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket
