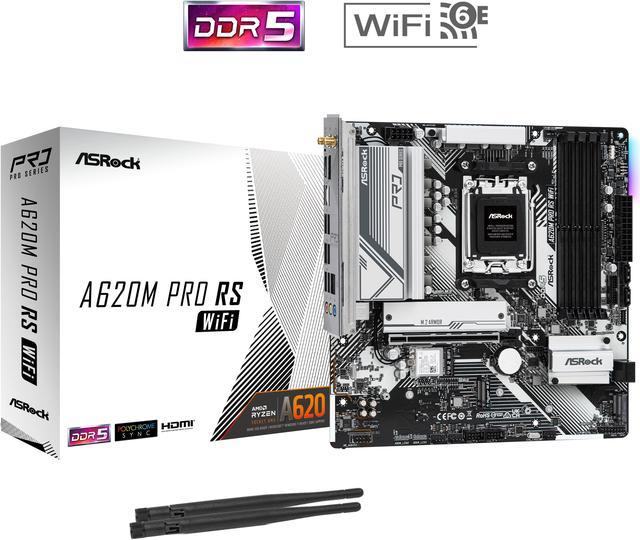

A620M Pro RS WiFi

Supports AMD Socket AM5 Ryzen™ 7000 Series Processors

AMD

AM5

 AMD A620

- Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 non-ECC, un-buffered memory up to 6000+(OC)
- Max. capacity of system memory: 128GB
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

6000

Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS / FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

N/A

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio

CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 1 x M.2 Socket (Key E), supports type 2230 WiFi / BT PCIe WiFi module

- 15μ Gold Contact in VGA PCIe Slot (PCIE1)

*Supports NVMe SSD as boot disks

PCIe 4.0

CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260 / 2280 PCIe Gen4x4 (64 Gb / s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260 / 2280 PCIe Gen4x4 (64 Gb / s) mode*
Chipset:
- 1 x M.2 Socket (M2_3, Key M), supports type 2260 / 2280 PCIe Gen3x2 (16 Gb / s) mode*
- 4 x SATA3 6.0 Gb / s Connectors

*Supports NVMe SSD as boot disks

PCIe 4.0

3

- 3 x USB 3.2 Gen1 Type-A Ports
- 1 x USB 3.2 Gen1 Type-C Port
- 4 x USB 2.0 Ports
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen1 Header

- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU / Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 3 x Chassis / Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen1 Header

*Supports in total up to 12V / 3A, 36W LED Strip

**Support in total up to 5V / 3A, 15W LED Strip

***CPU_FAN1 supports the fan power up to 1A (12W).

****CPU_FAN2 / WP supports the fan power up to 2A (24W).

*****CHA_FAN1~3 / WP support the fan power up to 2A (24W).
CPU_FAN2 / WP and CHA_FAN1~3 / WP can auto detect if 3-pin or 4-pin fan is in use.

- 2 x Antenna Ports
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 3 x USB 3.2 Gen1 Type-A Ports
- 1 x USB 3.2 Gen1 Type-C Port
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- HD Audio Jacks: Line in / Front Speaker / Microphone

- Gigabit LAN 10 / 100 / 1000 Mb / s
- Realtek 8111H

- 802.11ax Wi-Fi 6E Module
- Supports IEEE 802.11a / b / g / n / ac / ax
- Supports Dual-Band 2x2 with extended 6GHz band support*
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.2 + High speed class II
- Supports MU-MIMO

*Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available.
A 6GHz compatible router is required for 6E functionality.

Micro ATX

N/A

256Mb AMI UEFI Legal BIOS with GUI support

Superb Productivity
- Dual Channel DDR5
Rock-Solid Durability
- 6+2+1 Power Phase, 50A Dr.MOS
- Pre-Installed I / O Shield
Ultrafast Connectivity
802.11ax Wi-Fi 6EModule
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker< / a>

Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Polychrome SYNC
- ASRock XFast LAN
UEFI
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.

Microsoft Windows 10 64-bit / 11 64-bit

- 1 x User Manual
- 2 x SATA Data Cables
- 2 x ASRock WiFi 2.4 / 5 / 6 GHz Antennas
- 3 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket
