| Brand |
ASUS ราคา 23,900 บาท Inc.Vat |
| Model |

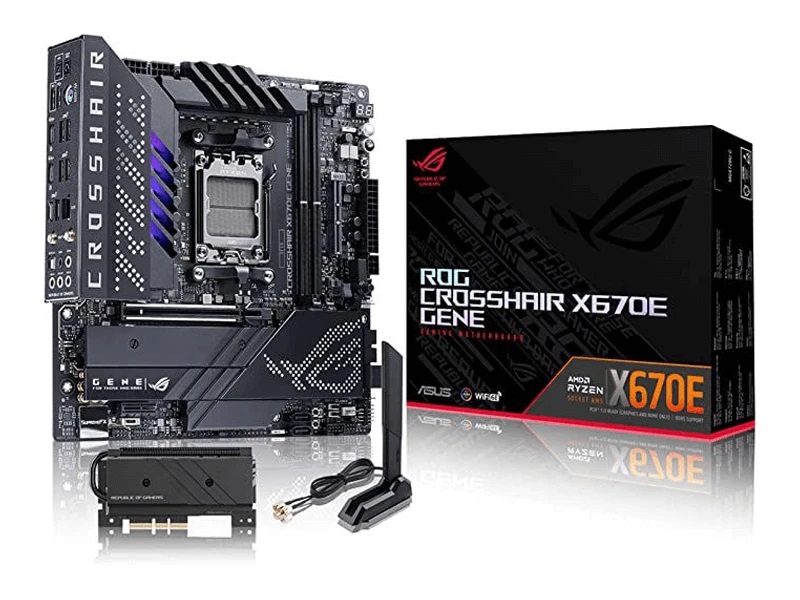

ROG CROSSHAIR X670E GENE
|
| CPU Support |
AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.
|
| Socket |
AM5
|
| Chipset |
AMD X670
|
| Memory Support |
2 x DIMM, Max. 64GB, DDR5 6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
|
| Memory Type |
DDR5
|
| Memory Bus |
5200/5000/4800
|
| Memory Slot |
2
|
| Graphics |
2 x USB4® ports support USB Type-C® display
outputs*
* VGA resolution support depends on processors' or graphic cards' resolution.
|
| Audio |
ROG SupremeFX 7.1 Surround Sound High
Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
|
| Expansion Slots |
AMD Ryzen™ 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot
AMD X670 Chipset
1 x PCIe 4.0 x1 slot
* Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
|
| Storage |
Total supports 3 x M.2 slots and 4 x SATA
6Gb/s ports*
AMD Ryzen™ 7000 Series Desktop Processors
M.2 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode)
GEN-Z.2_1 slot (Key M) via GEN-Z.2, type
2242/2260/2280/22110 (supports PCIe 5.0 x4)**
AMD X670 Chipset
GEN-Z.2_2 slot (Key M) via GEN-Z.2, type
2242/2260/2280/22110 (supports PCIe 4.0 x4)
4 x SATA 6Gb/s ports
*AMD RAIDXpert2 Technology supports both
NVMe RAID 0/1/10 and SATA RAID 0/1/10.
**Performance may vary depending on the
SSD's firmware version and the system hardware & system configuration, for more information refer to www.asus.com for device support site.
|
| USB |
Rear USB (Total 10 ports)
2 x USB4® ports with Intel® JHL8540 USB4®
controller (2 x USB Type-C®)
6 x USB 3.2 Gen 2 ports (5 x Type-A + 1 x USB Type-C®)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 60W PD/QC4+)*
1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
*To support 60W, please install the power cable to the 6-pin PCIe Graphics Card connector or else only 27W can be supported.
|
| Internal I/O Connectors |
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
1 x 4-pin Chassis Fan header
3 x 4-pin Full Speed Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
1 x 6-pin PCIe Graphics Card connector
Storage related
1 x M.2 slots (Key M)
1 x Gen-Z.2 slot supports 2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x 80 Light Bar jumper
2 x Addressable Gen 2 headers
1 x Alteration Mode Switch
1 x Aura RGB header
2 x BCLK button
1 x FlexKey button
1 x 10-1 pin Front Panel Audio header (AAFP)
1 x LN2 Mode jumper
1 x Osc sence header
12 x ProbeIt Measurement Points
1 x ReTry button
1 x RSVD switch
1 x RSVD header
1 x Safe Boot button
1 x Slow Mode switch
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
|
| Back Panel Connectors |
2 x USB4® ports with Intel® JHL8540 USB4® controller (2 x USB Type-C®)
6 x USB 3.2 Gen 2 ports (5 x Type-A + 1 x USB Type-C®)
2 x USB 2.0 ports (2 x Type-A)
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet
5 x Gold-plated audio jacks*
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
1 x PS/2 Keyboard/Mouse combo port
*The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
|
| LAN |
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
|
| Wireless Data Network |
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.3**
* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
** The Bluetooth version may vary, please
refer to the Wi-Fi module manufacturer's website for the latest specifications.
|
| Form Factor |
micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
|
| H/W Monitoring |
N/A
|
| BIOS |
256 Mb Flash ROM, UEFI AMI BIOS
|
| Special Features |
Extreme OC Kit
- FlexKey button
- LN2 Mode
- ProbeIt
- ReTry button
- Safe boot button
- Start button
- Slow Mode
Extreme Engine Digi+
- 10K Black Metallic Capacitors
- MicroFine Alloy Choke
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Code
- Q-Connector
- Q-DIMM
- Q-LED (CPU red, DRAM yellow, VGA white, Boot Device yellow green)
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Front Panel USB 3.2 Gen 2x2 with Quick
Charge 4+ Support
- Support: up to 60W charging*
- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
- Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS
*To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W
|
| Software Features |
ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- ROG True Voltician
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound
- BullGuard Internet Security (1-year full version)
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (1 year full version)
- Aura Creator
- Aura Sync
- Fan Xpert 4 with AI Cooling II
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- TPU
- DIGI+ Power Control
- Turbo app
- PC Cleaner
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
|
| Operating System Support |
Windows® 11 64-bit, Windows® 10 64-bit
|
| Package Dimension |
(W x D x H) : 29.00 x 37.00 x 7.00 cm |
| Gross Weight |
2.90 KG |
| Volume |
7,511.00 cm3 |
