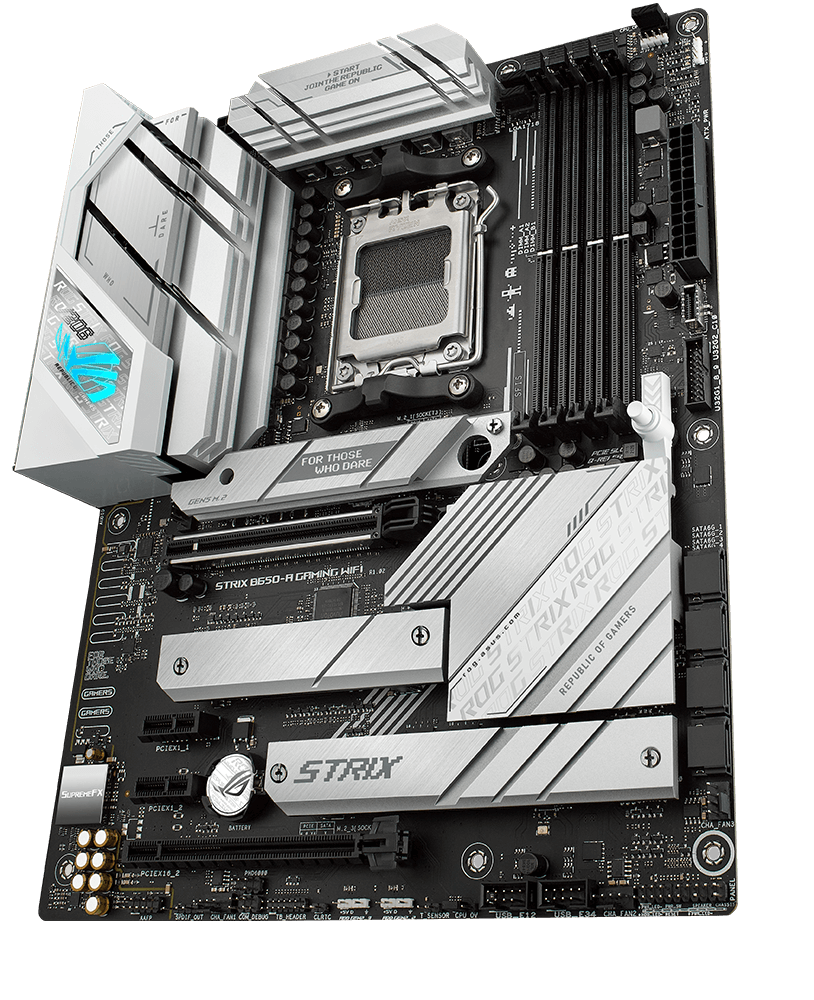

ROG STRIX B650-A GAMING WIFI

AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.

AM5

AMD B650

4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

DDR5

5200/ 5000/ 4800

4

1 x DisplayPort*
1 x HDMI^® port**
* Supports max. 8K@60Hz as specified in DisplayPort 1.4.
**Supports 4K@60Hz as specified in HDMI 2.1.

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover

AMD Ryzen™ 7000 Series Desktop Processors
1 x PCIe 4.0 x16 slot
AMD B650 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)*
2 x PCIe 4.0/3.0 x1 slots
* PCIe 4.0 x16 slot (supports x4 mode) from AMD B650 Chipset shares bandwidth with M.2_3.

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD B650 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)**
4 x SATA 6Gb/s port
*AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
** M.2_3 slot shares bandwidth with PCIe 4.0 x16 slot (supports x4 mode) When M.2_3 slot is operating in PCIe mode, M.2_3 will be disabled.

Rear USB (Total 9 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^®)
4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C^®)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C^®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers supports additional 4 USB 2.0 ports

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C^®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers supports additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™header
1 x COM_DEBUGheader

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^®)
4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C^®)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI^® port
1 x Wi-Fi Module
1 x Intel^® 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™  button

1 x Intel^® 2.5Gb Ethernet
ASUS LANGuard

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
* Wi-Fi 6E 6GHz regulatory may vary between countries, and function will be
ready in Windows 11 or later.

TX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

N/A

256 Mb Flash ROM, UEFI AMI BIOS

Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-LED
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- AURA RGB header
- Addressable Gen 2 headers

ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS^® Sound Unbound
- Anti-virus software
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- AURA Creator
- AURA Sync
- Fan Xpert 4
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- TPU
- DIGI+ VRM
- Turbo app
- PC Cleaner
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey

Windows^® 11 64-bit
