| Brand |
ASUS ราคา 7,990 บาท Inc.Vat |
| Model |

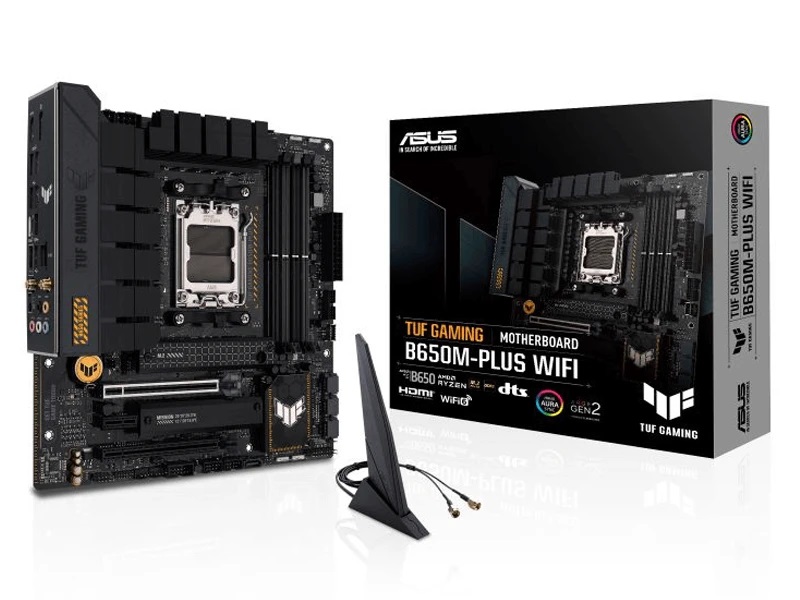

TUF GAMING B650M-PLUS WIFI
|
| CPU Support |
AMD Socket AM5 for AMD Ryzen™ 7000 Series
Desktop Processors*
* Refer to www.asus.com for CPU support list.
|
| Socket |
AM5
|
| Chipset |
AMD B650
|
| Memory Support |
4 x DIMM, Max. 128GB, DDR5
6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
|
| Memory Type |
DDR5
|
| Memory Bus |
5600/ 5400/ 5200/ 5000/ 4800
|
| Memory Slot |
4
|
| Graphics |
1 x DisplayPort*
1 x HDMI® port**
* Supports max. 8K@60Hz as specified in DisplayPort 1.4.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** VGA resolution support depends on processors' or graphic cards' resolution.
|
| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
|
| Expansion Slots |
AMD Ryzen™ 7000 Series Desktop Processors*
1 x PCIe 4.0/3.0 x16 slot
AMD B650 Chipset
1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
1 x PCIe 4.0/3.0 x1 slot
* Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
|
| Storage |
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD B650 Chipset
4 x SATA 6Gb/s ports
*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
|
| USB |
Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
|
| Internal I/O Connectors |
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB Gen 1 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ (USB4®) header
|
| Back Panel Connectors |
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI®port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™ button
|
| LAN |
1 x Realtek 2.5Gb Ethernet
TUF LANGuard
|
| Wireless Data Network |
Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
|
| Form Factor |
micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
|
| H/W Monitoring |
N/A
|
| BIOS |
256 Mb Flash ROM, UEFI AMI BIOS
|
| Special Features |
ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU red, DRAM yellow, VGA white, Boot Device yellow green)
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
|
| Software Features |
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
-TurboV EVO
-DIGI+ VRM
-PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
MyAsus
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
|
| Operating System Support |
Windows®11, Windows®10 64-bit
|
| Package Dimension |
(W x D x H) : 27.00 x 27.50 x 6.50 cm |
| Gross Weight |
1.60 KG |
| Volume |
4,826.25 cm3 |
