| Brand |
ASROCK ราคา 1,550 บาท Inc.Vat |
| Model |

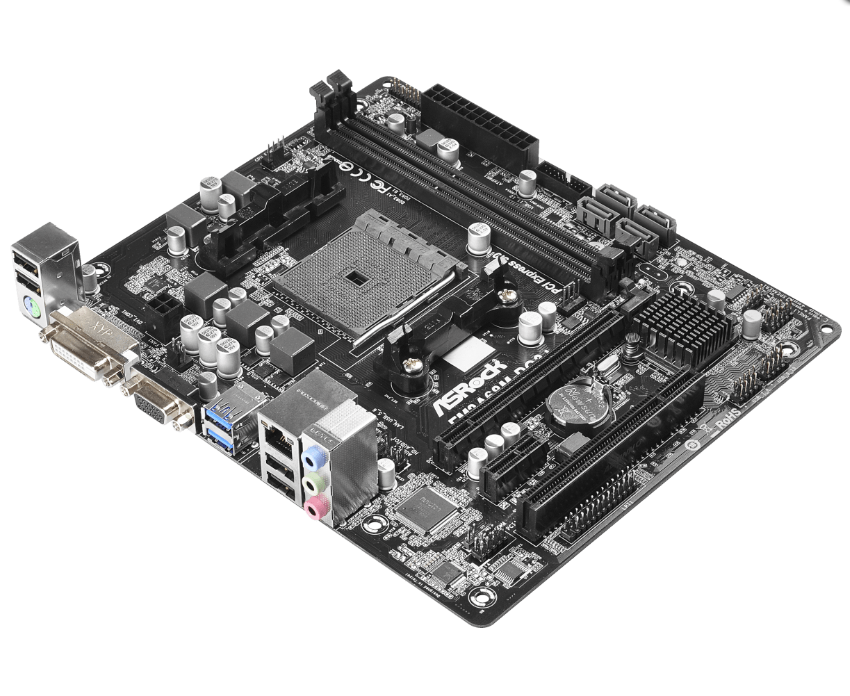

FM2A68M-DG3+ |
| CPU Support |
Supports Socket FM2+ 95W / FM2 100W processors |
| Socket |
FM2+ |
| Chipset |
AMD A68H |
| Memory Support |
Dual Channel DDR3 Memory Technology
2 x DDR3 DIMM Slots
Supports DDR3 2400+(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory
Max. capacity of system memory: 32GB*
Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
Supports AMD Memory Profile Technology (AMP) up to AMP 2400
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. |
| Memory Type |
DDR3 |
| Memory Bus |
1600 / 1333 / 1066 MHz |
| Memory Slot |
2 Slots |
| Graphics |
Integrated AMD Radeon™ R7/R5 Series Graphics in A-series APU
DirectX 11.1, Pixel Shader 5.0 with FM2+ CPU. DirectX 11, Pixel Shader 5.0 with FM2 CPU.
Max. shared memory 2GB
Dual graphics output options: support DVI-D and D-Sub by independent display controllers
Supports Dual-link DVI-D with max. resolution up to 2560x1600 @ 60Hz
Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
Supports AMD Steady Video™ 2.0: New video post processing capability for automatic jitter reduction on home/online video
Supports HDCP with DVI-D Port
Supports Full HD 1080p Blu-ray (BD) playback with DVI-D Port |
| Audio |
5.1 CH HD Audio (Realtek ALC662 Audio Codec)
Supports Surge Protection (ASRock Full Spike Protection) |
| Expansion Slots |
1 x PCI Express 3.0 x16 Slot (PCIE1@ x16 mode)
1 x PCI Express 2.0 x1 Slot
1 x PCI Slot
Supports AMD Dual Graphics
*PCIE 3.0 is only supported with FM2+ CPU. With FM2 CPU, it only supports PCIE 2.0. |
| Storage |
4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug |
| Internal I/O Connectors |
1 x Print Port Header
1 x COM Port Header
1 x Chassis Intrusion Header
1 x TPM Header
1 x CPU Fan Connector (4-pin)
1 x Chassis Fan Connector (4-pin)
1 x Power Fan Connector (3-pin)
1 x 24 pin ATX Power Connector
1 x 4 pin 12V Power Connector
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
1 x Flexible USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) |
| Back Panel Connectors |
1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x DVI-D Port
4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
2 x USB 3.0 Ports (AMD A68H (Bolton-D2H)) (Supports ESD Protection (ASRock Full Spike Protection))
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone |
| LAN |
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Realtek RTL8111GR
Supports Wake-On-WAN
Supports Wake-On-LAN
Supports Lightning/ESD Protection (ASRock Full Spike Protection)
Supports LAN Cable Detection
Supports Energy Efficient Ethernet 802.3az
Supports PXE |
| Form Factor |
Micro ATX Form Factor
All Solid Capacitor design
High Density Glass Fabric PCB |
| H/W Monitoring |
CPU temperature sensing
Chassis temperature sensing
CPU Fan Tachometer
Chassis Fan Tachometer
CPU/Chassis Quiet Fan
CPU/Chassis Fan multi-speed control
CASE OPEN detection
Voltage monitoring: +12V, +5V, +3.3V, Vcore |
| BIOS |
64Mb AMI UEFI Legal BIOS with GUI support
Supports "Plug and Play"
ACPI 1.1 Compliant wake up events
Supports jumperfree
SMBIOS 2.3.1 support
DRAM, CPU Voltage multi-adjustment |
| Software Features |
Software
- ASRock A-Tuning
- ASRock Disk Health Report
- ASRock USB Key
- ASRock APP Charger
- ASRock XFast RAM
- ASRock Restart to UEFI
- ASRock X-Boost
UEFI
- ASRock Interactive UEFI
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock UEFI System Browser
- ASRock UEFI Tech Service
- ASRock Dehumidifier Function
- ASRock Easy RAID Installer
- ASRock Easy Driver Installer |
| Operating System Support |
Microsoft® Windows® 10 32-bit / 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit |
| Package Dimension |
(W x D x H) : 21.00 x 27.50 x 6.00 cm |
| Gross Weight |
0.70 KG |
| Volume |
3,465.00 cm3 |
